(주)와이즈

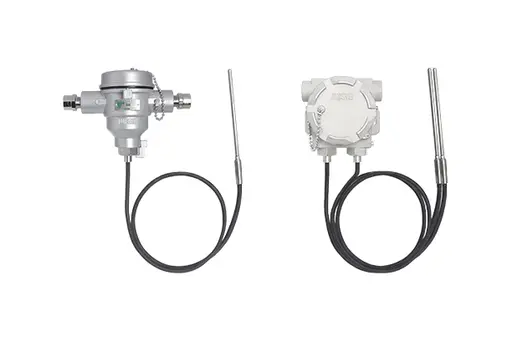

Explosion Proof Remote Mounting Wire Thermocouple And Resistance Temperature Detector

모델명

시리즈

온도센서•히터•트랜스미터

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

02-300-2300

제품 상세 설명

Service intended

Thermocouples and resistance thermometers manufactured by Wise Co., Ltd. are precision-manufactured products according to customer specifications. This product is designed with a pressure-resistant explosion-proof structure and consists of an enclosure and a sensing unit to protect internal defect devices. For the correct use of this product, testing, and storage must be carried out in an appropriate place, and the necessary conditions such as various documents, test reports and instruction manuals must be observed in order to maintain optimal use during the period of use.

Specification

Certificates	KCs Ex db eb IIC T6 Gb
Ambient temperature	-40 ~ +65 ºC (Silicone) -20 ~ +65 ºC (Viton, NBR)
Degree of protection	EN60529/IEC529/IP66
Element	Thermocouple : K, E, J, T, N, R, S, B RTD : Pt 100Ω at 0 ºC
Tolerances on temperature reading	■ Thermocouple Class 1, Class 2 (DIN/IEC584-2, BS/EN60584-2, JIS C1602) Special, Standard (ASTM E230, E988, ISA-MC96.1) ■ R.T.D Class A : ± (0.15 + 0.002 I t I) Class B : ± (0.3 + 0.005 I t I)
Sheath outer diameter	■ Thermocouple 1.0, 1.6, 2.3, 3.2, 4.8, 6.4, 8.0, 9.5 and 12.7 mm * Double element is not available for 1.0 and 1.6 mm sheath outer diameter. ■ R.T.D 3.2, 4.8, 6.4 and 8.0 mm

자료 다운로드

Catalog-WISE-TG Sensor•Heater•Transmitter-Explosion Proof Remote Mounting Wire Thermocouple And Resistance Temperature Detector

Manual-WISE-TG Sensor•Heater•Transmitter-Explosion Proof Remote Mounting Wire Thermocouple And Resistance Temperature Detector
