(주)와이즈

Explosion Proof Thermocouple And Resistance Temperature Detector

모델명

시리즈

온도센서•히터•트랜스미터

구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.

02-300-2300

제품 상세 설명

R940 series (ETR series)_R941, R942, R943, R944

Service intended

Measuring the temperature in the area where combustible gas, particles and flammable liquid exist can be a very dangerous task. The electrical energy of measuring instrument is lower than electric motor, however, the malfunction of the instrument or the accident can cause to start the explosion. Therefore, ETR series is explosion proof type product which is designed to be used in a critical danger Zone 1 by acquiring IECEx and ATEX certification.

Certificates	ATEX II 2G Ex d IIC T6 Gb IECEx Ex d IIC T6 Gb
Ambient temperature	-40 ~ +65 ºC
Degree of protection	EN60529/IEC529/IP67

Standard features

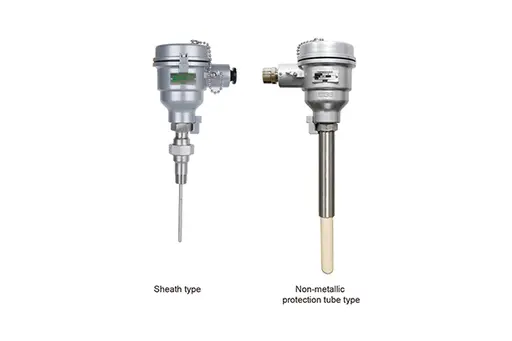

Element	■ Sheath type Thermocouple : K, E, J, T, N RTD : Pt 100 Ω at 0 ℃ ■ Non-metallic protection tube type Type R (87 % Pt, 13 % Rh/Pt) Type S (90 % Pt, 10 % Rh/Pt) Type B (70 % Pt, 30 % Rh / 94 % Pt, 6 % Rh) Type K
Head material	ALDC (Standard) 316SS
Tolerances on temperature reading	■ Sheath type - Thermocouple Class 1, Class 2 (DIN/IEC584-2, BS/EN60584-2, JIS C1602) Special, Standard (ASTM E230, E988, ISA-MC96.1) - R.T.D. Class A : ± (0.15 + 0.002 l t l) Class B : ± (0.3 + 0.005 l t l) ■ Non-metallic protection tube type "K" type : Class 2 (0.75 %) Standard (0.75 %) "R", "S" type : Class 2 (0.25 %) Standard (0.5 %) "B" type : Class 3 (0.5 %) Standard (0.5 %)
