Description

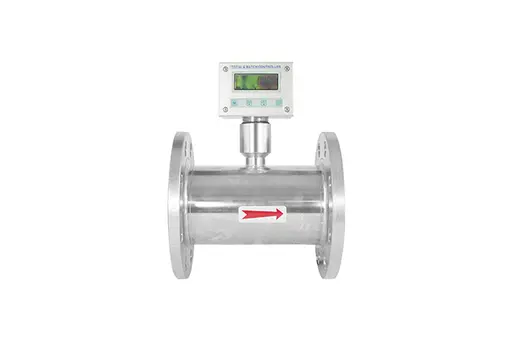

It is 2 wire turbine flow transmitter specially used for various industrial application and operated by battery with life time, 3 ~ 4 years. The flowing media engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate.
Specification
Process connection | Flanged Screwed |
Size | 10A ~ 250A |
Material | 304SS 316SS 316L SS |
Pressure rating | STD. 10 kgf/cm² Max. 350 kgf/cm² (Option) |
Temperature rating | STD. 120 °C Max. 200 °C (Option) |
Accuracy | ±1.0 % of full scale |
