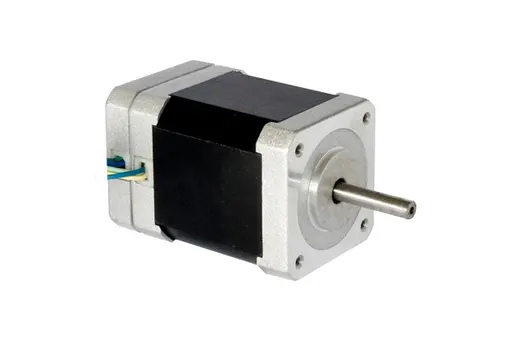

기본사양
Rated Voltage : 24V
Rated Speed : 4000(rpm)
Rated Torque : 0.063 ~ 0.188(N/m)
Rated Current : 1.9 ~ 5.7
Output Power(W) : 26 ~ 78W
■ General Specifications
Winding Type | Star |
---|---|
Hall Effect angel | 120° Electrical angel |
Insulation Class | B |
Ambient Temperature Range | -20℃~+50℃ |
Insulation Resistance | 100MΩ Min.500VC DC |
Dielectric Strength | 600VAC 1 minute |
■ Electrical Specifications
Model | 42BLF01 | 42BLF02 | 42BLF03 | |
---|---|---|---|---|
Number of Poles | 4 | |||
Number of Phases | 3 | |||
Rated Voltage | VDC | 12 | 24 | 24 |
Rated Speed | RPM | 4000 | 4000 | 4000 |
Rated Torque | N-m | 0.063 | 0.125 | 0.188 |
Rated Current | Amps | 1.9 | 3.4 | 5.7 |
Output Power | Watts | 2.6 | 52 | 78 |
Peak Torque | N-m | 0.18 | 0.38 | 0.75 |
Peak Current | Amps | 5.7 | 10.2 | 18 |
Torque Constant | N-m/Amps | 0.035 | 0.036 | 0.036 |
Back EMF | V/kRPM | 3.7 | 3.8 | 3.8 |
Rotor Inertia | kg·cm2 | 24 | 48 | 72 |
Body Length(L) | mm | 47 | 63 | 79 |
Mass | kg | 0.33 | 0.48 | 0.63 |
■ Mechanical Dimensions
■ Wiring Diagram
