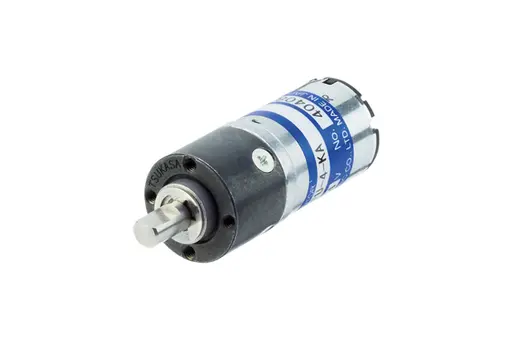

Product Kinds
Rated Voltage : 12 - 24V
Shaft : 22Φ
Rated Torque : Max. 3.0kgf/cm
Gear Ratio : 1/4 - 1/509
■ Allowable torque-speed characteristics Ru
MODEL | Gear Ratio | 1/4 | 1/4.7 | 1/16 | 1/19 | 1/23 | 1/64 | 1/76 | 1/90 | 1/107 | 1/256 | 1/304 | 1/361 | 1/429 | 1/509 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TG-01F-FU (24V) |
Speed(r/min) | 1026 | 855 | 258 | 220 | 187 | 53.4 | 60.9 | 44.9 | 37.9 | 15.8 | 13.3 | 11.3 | 9.5 | 8 |
Torque(mN/m) | 2.94 | 3.92 | 9.8 | 9.8 | 9.8 | 39.2 | 49 | 58.8 | 68.6 | 147 | 176.4 | 196 | 245 | 294 | |
Torque(kgf/cm | 0.03 | 0.04 | 0.1 | 0.1 | 0.1 | 0.4 | 0.5 | 0.6 | 1.5 | 0.6 | 1.8 | 2 | 2.5 | 3 | |
TG-01G-FU (24V) |
Speed(r/min) | 1919 | 1604 | 481 | 409 | 347 | 155 | 100 | 84.3 | 71.1 | 29.7 | 25 | 21.2 | 17.8 | 14.9 |
Torque(mN/m) | 2.94 | 3.92 | 9.8 | 9.8 | 9.8 | 39.2 | 49 | 58.8 | 68.6 | 147 | 176.4 | 196 | 245 | 294 | |
Torque(kgf/cm | 0.03 | 0.04 | 0.1 | 0.1 | 0.1 | 0.4 | 0.5 | 0.6 | 1.5 | 0.6 | 1.8 | 2 | 2.5 | 3 | |
TG-01H-FU (12V) |
Speed(r/min) | 1924 | 1608 | 482 | 410 | 348 | 120 | 100 | 84.5 | 71.3 | 29.8 | 1.8 | 21.2 | 17.8 | 5 |
Torque(mN/m) | 2.94 | 3.92 | 9.8 | 9.8 | 9.8 | 39.2 | 49 | 58.8 | 68.6 | 147 | 176.4 | 196 | 245 | 294 | |
Torque(kgf/cm | 0.03 | 0.04 | 0.1 | 0.1 | 0.1 | 0.4 | 0.5 | 0.6 | 1.5 | 0.6 | 1.8 | 2 | 2.5 | 3 |
■ Ru
Gear Ratio | L (mm) |
STAGE | Torque | Weight (g) |
|
---|---|---|---|---|---|
(mN/m) | (kgf/cm) | ||||
1/4 ~ 1/4.7 | 19.5 | 1 | 49 | 0.5 | 41 |
1/16 ~ 1/23 | 24.5 | 2 | 98 | 1 | 49 |
1/64 ~ 1/107 | 29.5 | 3 | 196 | 2 | 57 |
1/256 ~ 1/509 | 34.5 | 4 | 294 | 3 | 66 |

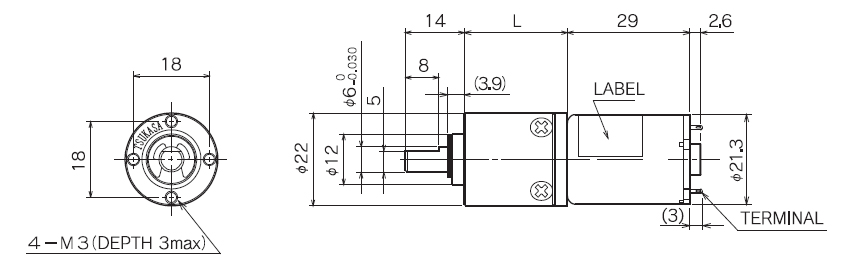

■ Mechanical Dimension
