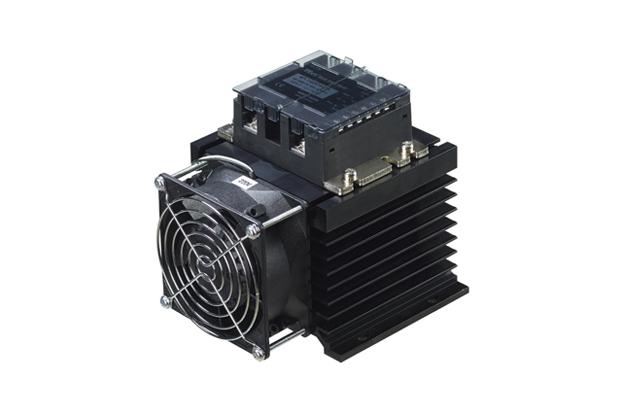

무접점릴레이 온도검출용
모델명
WYTH2C10Z4
시리즈
무접점릴레이 SSR
자료
메뉴얼-운영-무접점릴레이-온도검출용
구매정보
provider logo
(주)운영

각종 전자 제어장치 전문제조업체, UL변압기, UL트랜스, NCT, 리액터, SSR, TPR, SMPS, SPD, 노이즈필터, 계전기

연락처
041-411-3800
이메일
woonyoung@woonyoung.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
(주)운영[바로가기]
브랜드
-
SKU
131710
제품명
무접점릴레이 온도검출용
모델명
WYTH2C10Z4, WYTH2C20Z4, WYTH2C30Z4, WYTH2C40Z4, WYTH2C50Z4, WYTH2C60Z4, WYTH2C80Z4
사이즈
-
중량
-
제품 상세 정보
Model No WYTH2C10Z4 WYTH2C20Z4 WYTH2C30Z4 WYTH2C40Z4 WYTH2C50Z4 WYTH2C60Z4 WYTH2C80Z4
TYPE 2극 온도검출용("S" 마크)
인증서(Certification) S마크
정격(Rating) 440VAC
입력(Input) 12VDC~24VDC
출력(Output) 440VAC
용량(Capacity) 10A 20A 30A 40A 50A 60A 80A



사양 및 특징

2극 및 3극을 차단하는 SSR로 현장에서의 과부하로인한 과열을 1차 경보(60도), 2차 경보(80도)로 제어하여 현장에서의 과열로인한 화재를 미연에 방지할수있는 1차, 2차 차단 기능회로가 내장되어 있는 온도 검출용 무접점 릴레이(SSR) 입니다. 또한, DIN-Rail 및 일반 판넬 고정방법으로 취부가 가능합니다.

※ S마크 획득
