Automatic valve manufacturer, For Power plant, Energy, Petro chemical, Oil refining, Food, Paper, Shipbuilding, Pharmaceutical field
■ Water distribution pipes
■ Industrial cleaning machines
■ Sterilizers, Boilers
■ Air conditioners, Water filters
■ Medical equipments, Vacuum packing
■ Food & Beverage lines
■ Vacuum distribution pipes

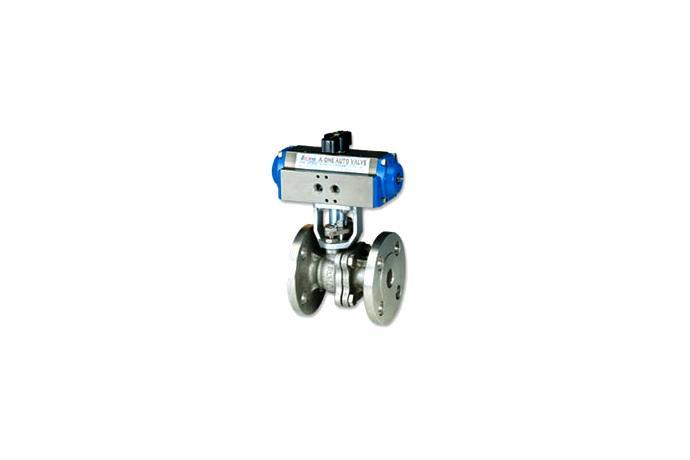

Valve Size | 15A ~ 350A | |||
Actuator Model | AD50 ~ AD300D | |||
Actuator Type | Double Acting | |||
Operating Media | Compressed Dry Air | |||
Operating Pressure | 4 ~ 7kg/㎠ | |||
Rotating Angle | 90 ˚ ±3 ˚ | |||
Fluid Temperature | -10 ~ 90 ℃ (-10 ~ 150 ℃) | |||
Rating | JIS 10K (20K) (40K) | ANSI 150# (300#) (600#) | ||
Body Material | SUS304 (SUS316)/Body | SUS304 (SUS316)/Ball | PTFE (GRAPHITE)/Seat | |
Accessory | Solenoid Valve, Air filter Regulator, Limit Switch Box, E-P Positioner |
■ Water distribution pipes
■ Industrial cleaning machines
■ Sterilizers, Boilers
■ Air conditioners, Water filters
■ Medical equipments, Vacuum packing
■ Food & Beverage lines
■ Vacuum distribution pipes
Valve Size | 15A ~ 250A | |||
Actuator Model | AS50 ~ AS200D | |||
Actuator Type | Single Acting (Spring Return) | |||
Operating Media | Compressed Dry Air | |||
Operating Pressure | 4.5 ~ 7kg/㎠ | |||
Rotating Angle | 90 ˚ ±3 ˚ | |||
Fluid Temperature | -10 ~ 90 ℃ (-10 ~ 150 ℃) | |||
Rating | JIS 10K (20K) (40K) | ANSI 150# (300#) (600#) | ||
Body Material | SUS304 (SUS316)/Body | SUS304 (SUS316)/Ball | PTFE (GRAPHITE)/Seat | |
Accessory | Solenoid Valve, Air filter Regulator, Limit Switch Box, E-P Positioner |
※ (Option)
