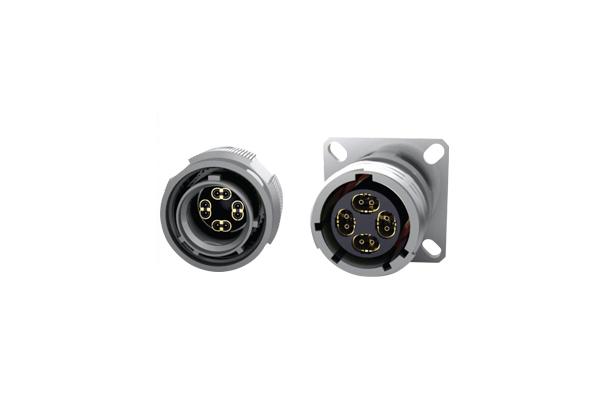

product Image

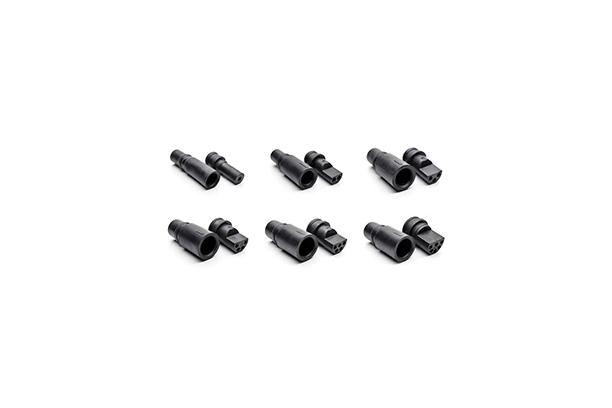

Amphenol Tuchel 44 Series Connectors
Model Name
-
Series
Connectors
Data
-
Manufacturer information
provider logo
AMPHENOL

Interconnect Product Manufacturer, Electrical, Electronic, Fiber Optic Connectors, Coaxial Cable and more

Problem with product info?
Update request
Manufacturer
AMPHENOL
Brand
-
SKU
141578
Product Name
Amphenol Tuchel 44 Series Connectors
Model Name
-
Size
-
Weight
-
Product Details

COST-EFFECTIVE ENVIRONMENTAL SEALING

Amphenol Tuchel 44 series connectors are rated IP65/67 and offer cost-effective performance for applications requiring environmental sealing. The Amphenol Tuchel connector’s single-piece structure is resistant to water, fuel, lubricants, ozone, road salt and vibration while being field-proven in rugged applications. For more information on this Amphenol Tuchel series, please see our full product specifications below.

Get shopping! This Amphenol Tuchel series part numbers begin with 44.





Features

  • Long-term resistance against environmental impacts
  • 3 liquid-proof seals (primary, secondary & wire)
  • Quick & easy assembly
  • Quick & easy mating
  • Protection against mismating
  • Protection class IP 65/67
  • High-reliability
  • Discrete wire interconnection
  • 2 to 6 low-insertion-force types





Tech Specs

Rated Insulation Voltage
250 V~

Rated Impulse Withstand Voltage
1000 V~

Current Carrying Capacity
8 A

Insulation Resistance
> 5000 MΩ

Contact Resistance

Operating Temperature
- 40°C to +105°C

Wire Gauge
18 – 14 AWG (1.0 - 2.5 mm²)

Overall Wire Insulation Diameter
0.080 to 0.130 inches (2.03 to 3.30 mm)

Contact Material
Tinned-copper alloy

Insulation Material
Santoprene, thermoplastic rubber

Mating Cycles
25 max.

Contact Retention
Axial displacement of contact

Color
black
