Size (OD) |
Ordering Number |

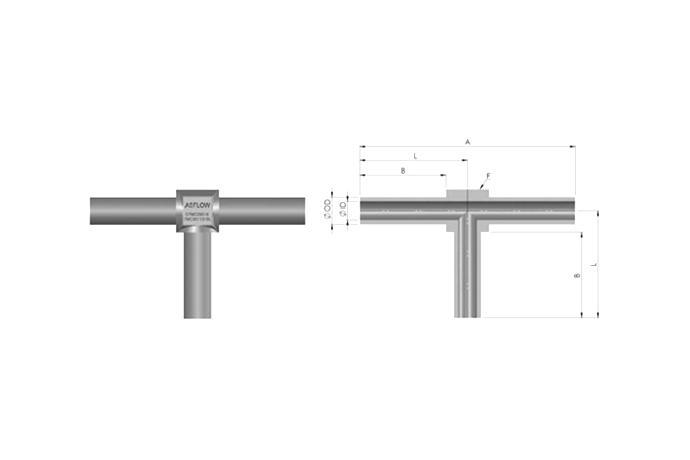

OD | ID | A | B | L | F | Working Pressure bar(psig) |
---|---|---|---|---|---|---|---|---|
1/4″ | AC-LT04 | 6.35 | 4.35 | 50.00 | 20.00 | 25.00 | 10.00 | 351(5100) |
3/8″ | AC-LT06 | 9.53 | 7.53 | 52.00 | 20.00 | 26.00 | 12.50 | 227(3300) |
1/2″ | AC-LT08 | 12.70 | 10.22 | 56.00 | 20.00 | 28.00 | 16.00 | 254(3700) |
3/4″ | AC-LT12 | 19.05 | 15.75 | 68.00 | 23.00 | 34.00 | 22.00 | 165(2400) |
1″ | AC-LT16 | 25.40 | 22.10 | 75.00 | 23.50 | 37.50 | 28.50 | 165(2400) |
6M | AC-LT6M | 6.00 | 4.00 | 50.00 | 20.00 | 25.00 | 10.00 | 420(6095) |
8M | AC-LT8M | 8.00 | 6.00 | 52.00 | 20.00 | 26.00 | 12.50 | 310(4499) |
10M | AC-LT10M | 10.00 | 8.00 | 56.00 | 20.00 | 28.00 | 16.00 | 240(3483) |
12M | AC-LT12M | 12.00 | 10.00 | 56.00 | 20.00 | 28.00 | 16.00 | 200(2902) |
18M | AC-LT18M | 18.00 | 15.00 | 68.00 | 23.00 | 34.00 | 22.00 | 200(2902) |
