Size (OD1) |
Size (OD2) |
Ordering Number |

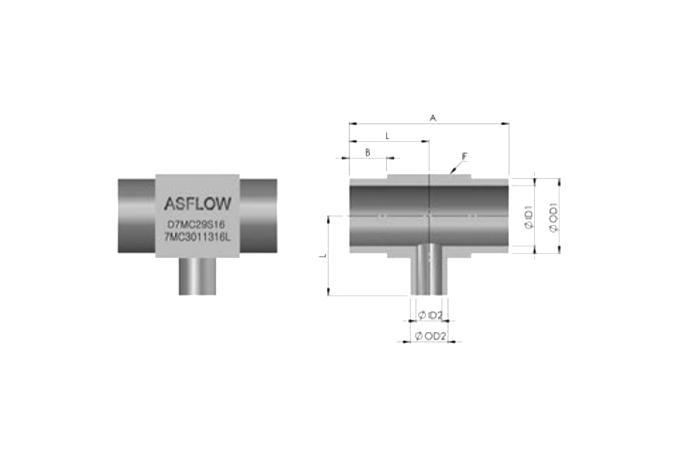

OD | ID | A | B | L | F | Working Pressure bar(psig) |
||
---|---|---|---|---|---|---|---|---|---|---|---|
OD1 | OD2 | ID1 | ID2 | ||||||||
3/8″ | 1/4″ | AC-MRT06-04 | 9.53 | 6.35 | 7.53 | 4.35 | 23.81 | 6.35 | 11.91 | 11.11 | 227(3300) |
1/2″ | 1/4″ | AC-MRT08-04 | 12.70 | 6.35 | 10.22 | 4.35 | 26.99 | 6.35 | 13.50 | 14.29 | 254(3700) |
1/2″ | 3/8″ | AC-MRT08-06 | 12.70 | 9.53 | 10.22 | 7.53 | 26.99 | 6.35 | 13.50 | 14.29 | 227(3300) |
8M | 6M | AC-MRT8M-6M | 8.00 | 6.00 | 6.00 | 4.00 | 23.81 | 6.35 | 11.91 | 11.11 | 310(4499) |
12M | 6M | AC-MRT12M-6M | 12.00 | 6.00 | 10.00 | 4.00 | 26.99 | 6.35 | 13.50 | 14.29 | 200(2902) |
12M | 8M | AC-MRT12M-8M | 12.00 | 8.00 | 10.00 | 6.00 | 26.99 | 6.35 | 13.50 | 14.29 | 200(2902) |
