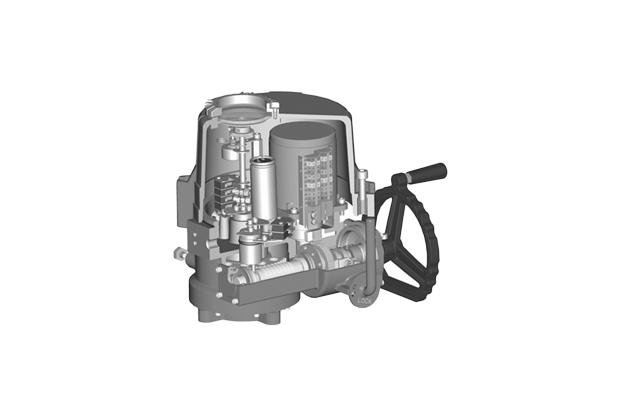

Electric Actuator (Rotary Type Actuator)

Electric Actuator (Rotary Type Actuator)

Model Name

Series

Electric Products

View AllView All Series

Data

Manufacturer information

AUTOMA

Automatic valve, Electric ball valve, Control valve, Globe valve, Actuator and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

AUTOMA

Brand

SKU

135240

Product Name

Electric Actuator (Rotary Type Actuator)

Model Name

Size

Weight

Product Details

Model	Rated torque	Duty cycle	Oper. time 50/60Hz	Max bore size	Motor insulation	Rated current (A) 50/60Hz					No of turns	Weight
						1Phase		3Phase		DC
	Nm	%	90˚	mm	class	110V	220V	380V	440V	24V	90˚	Kg

Small ATM-Series

ATM0020	25	50	11	Ø9 x 9	E	0.45/0.44	0.26/0.25	0.03/0.31	0.28/0.40	3	N/A	1
ATM0040	40	50	Dec-14	Ø14 x 14	E	0.49/0.48	0.29/0.28	0.32/0.33	0.30/0.42	3.5	7.5	3
ATM0080	80	50	16/14	Ø17 x 17	E	0.92/0.88	0.48/0.46	0.18/0.17	0.17/0.16	2.9	7	7

Regular ATM-Series

ATM0100	100	40	21/18	Ø22	Ø20	F	0.98/1.10	0.52/0.58	0.43/0.33	0.59/0.42	2.8	10	7
ATM0160	160	30	26/22	Ø25	Ø23	F	1.60/1.70	0.85/0.90	0.30/0.30	0.30/0.32	1.8	12	15
ATM0240	240	30	26/22	Ø25	Ø23	F	1.62/1.72	0.87/0.90	0.32/0.32	0.32/0.35	2.4	12	15
ATM0350	350	30	31/26	Ø40	Ø34	F	1.75/1.68	0.93/0.89	0.30/0.30	0.32/0.31	3.8	14	20
ATM0500	500	30	31/26	Ø40	Ø34	F	3.60/3.90	2.50/1.60	0.52/0.56	0.55/0.58	5	14	20
ATM0800	800	30	39/32	Ø48	Ø40	F	3.90/4.20	2.05/2.20	0.82/0.88	0.82/0.88	-	17	25
ATM1100	1100	30	39/32	Ø48	Ø40	F	3.90/4.30	2.15/2.30	0.84/0.90	0.84/0.88	-	17	25
ATM2000	2000	30	59/50	Ø75	Ø64	F	-	2.95/3.15	1.5/1.8	2.3/2.2	-	13	42
ATM3000	3000	30	59/50	Ø75	Ø64	F	-	3.75/3.85	1.6/2.0	2.5/2.4	-	13	42

Large ATM-Series

ATM6000	6000	30	178/149	Ø120	Ø100	F	-	2.95/3.15	1.5/1.8	2.3/2.2	-	39	152
ATM9000	9000	30	178/149	Ø120	Ø100	F	-	3.75/3.85	1.6/2.0	2.5/2.4	-	39	152

Enclosure	Weatherproof IP67, NEMA 4X and 6, O-ring sealed (ATM0020 & ATM0040 : IP66)
Main Power supply	24VDC, 110/220VAC/1Ph/50/60Hz, 380/440VAC/3Ph/50/60Hz ±10%, (ATM0020 & ATM0040 : 1Phase)
Control power supply	110/220VAC/1Ph/50/60Hz ±10%
Duty cycle (on-off)	S2 : 10min ~ 30min
Duty cycle (modulating)	S4 : 30 ~ 50%, 300 ~ 1200 start/hour
Motor	Squirrel cage induction motor
Limit switches	2 each for open and close(SPDT 250VAC/10A rating)
Torque switches	2 each for open and close(SPDT 250VAC/10A rating except for ATM0020/0040/0080/0100)
Stall protection/set temp.	Built in thermal protection, open 150℃ ±5℃, close 97℃ ±15℃
Travel angle	90˚ ± 5˚ (0℃ ~ 100℃)
Position indicator	Continuous mechanical indicator with arrow
Manual override	De-clutchable (except for ATM0020 : N/A, ATM0040 : by shaft, ATM0080 : by wrench)
Self locking	Provided by double worm gearing (no brake) (except for ATM0020/0040/0080)
Mechanical stopper	1 each for each travel end (open and close), external adjustable (except for ATM0020/0040)
Space heater	5W(110/220VAC) for anti condensation
Cable entries	2-PF3/4" TAP except for ATM0020 : 1-PG11, ATM0040 : 2-PG13.5, ATM0080 : 2-M20X1.5
Lubrication	EP type grease
Terminal block	screw and lever push type(spring loaded)
Ambient temperature	Basic actuator : -20℃ ~ +70℃ except for ATM0020 : -10℃ ~ +65℃ c/w control option : -10℃ ~ +60℃
Ambient humidity	90%RH Max (Non-condensing)
Anti vibration	XYZ 10g. 02 ~ 34 Hz, 30 miinutes
External coating	Dry powder(Polyester), Blue Color, Munsell No. B-0188

Mechanical

Symbol	Description	Remark
EX	Explosion proof(Exd IIB T4)/Approved by KTL	Except for ATM0020/0040/0080
WT	Waterright(IP68), Temporary submersible/10M Head 1000hours	Except for ATM0020/0040/0080
ALS	Auxiliary limit switches(Max 2 for each travel end)	Except for ATM0020/0040
ATS	Auxiliary torque switches(Max 2 for each travel end)	Except for ATM0020/0040/0080/0100
EXT	Extended travel angle(up to 120˚, 135˚, 180˚, 270˚)	Except for ATM with Large ATM-Series
SV	Variation in torque and operating speed	Please consult before ordering

Remote monitoring and control

PK	Potentiometer Kit(output signal:0~1kohm) High resolution potentiometer and precisely machined gearing are directly engaged with drive shaft to feedback continuous position of valve
CT	Current Transmitter(output signal:4~20mA) Zero/Span Adjustment Convertible DIP switch(4 wire to 2 wire)
RPC/Signal Configuration	Remote Position Controller(by input and output signal) Input:4~20mA, 0~10VDC, 2~10VDC, 1~5VDC, 0~5VDC Output:4~20mA, 0~10VDC, 2~10VDC, 1~5VDC, 0~5VDC Auto calibration Reverse operating direction

Local Control

LP4 / LM4	LP4 for 1 & 3Phase(ATM0160~9000) Control power : Free Voltage(85~265VAC)50/60Hz, Option : 24VDC Magnetci slector switches, SMPS(Switching Module Power Supply) : Open/Close & Local/Stop/Remote Local lamp indication : Power-White(on), Remote : Blue(on) : In case of Close Torque Switch Trip- Yellow(on)+Green(flickering:only at Local Position) : In case of Open Torque Switch Trip- Yellow(on)+Red(flickering:only at Local Position) : Full Close-Green(on), Closing-Green(flickering:only at Local Position) : Full Open-Red(on), Opening-Red(flickering:only at Local Position) ※ Options Available:PK, CT, RPC(Modulating), IP68, Explosion proof LM4 for 3 Phase(ATM0160~9000) Including the same function as LP4 Revesing electric contactors, Transformer

Local Control

ICM1 for 1 & 3 Phase(Integral Control Module) (ATM0160~9000) Main Power : 3Ph 220V/380/440 VAC 1Ph 110V/220 VAC Control Power : 24 VDC, 5 VDC Magnetic selector switches : Open/Close & Local/Stop/Remote Reversing electric contactors, Transformer, Phase Detector Local lamp indication : Power-White(on), Remote : Blue(on) : In case of Close Torque Switch Trip-Yellow(on)+Green(flickering) : In case of Open Torque Switch Trip-Yellow(on)+Red(flickering) : Full Close-Green(on), Closing-Green(flickering:only at Local Position) : Full Open-Red(on), Opening-Red(flickering:only at Local Position) : Single & Revese Phasing : Yellow+Green+Red)all flickering ※ Options Available : Explosion proof, IP68

ICM2 for 1 & 3 Phase(Integral with LCD Display) (ATM0160~9000) Including the same function as ICM1 Reversing electric contactors, Transformer, Phase Detector Auto-Phase Discriminator, LCD Display ※ Options Available : CT, RPC(Modulating), Explosion proof ※ Options Available : IP68, Bus Communication ICM3 for 1 & 3 Phase(Integral with LCD Display/IP68 Enclosure) (ATM0160~9000) Including the same function as ICM2 Reversing electric contactors, Transformer, Phase Detector Auto-Phase Discriminator, LCD Display, IP68, Explosion proof RPC(Modulating), Bus Communication 34pins separate compartment for terminal block

Fail Safety

BP for 1 Phase(ATM0160~9000)

Rechargeable Battery back up-Fail Safe function When main power is alive, actuator works as normally Once power fails, actuator will move to pre-set fail safe position Input power-Free Voltage(85~265VAC) 50/60Hz Output contacts : Open/Close/Alarm relay LED signal indication : 4 LEDs(Full Open/Close, Over Troque and Power) Rechargeable battery : 2.0 AH 27.5 VDC(Ni-Cd)

Unit : mm
	RPC			CT			BP			LP4/LM4/ICM1/ICM2			LD2
	X	Y	Z	X	Y	Z	X	Y	Z	X	Y	Z	X	Y	Z
ATM0100	340	190	245	316	172	245	396	172	245		X			X
ATM0160/0240		○			○		475	229	259	499	229	259	517	284	259
ATM0350/0500		○			○		494	244	288	518	244	288	536	284	288
ATM0800/1100		○			○			X		541	284	313	559	284	313
ATM2000/3000		○			○			X		600	375	385	620	375	385
ATM6000/9000		○			○			X		677	417	668	697	417	668

*O : Installed inside of actuator *X : Not available *Z : Height of basic actuator

Typical Wiring (ATM 0040~0080)

Typical Wiring (ATM 0100)

Typical Wiring (ATM 0160~3000)

Typical Wiring (ATM 0100~3000)
