Manufacturer
DAEDONG MARINE TECH
Brand
-
SKU
118832

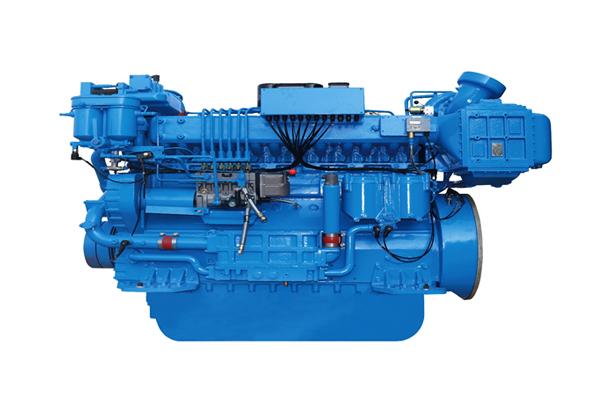

Product Name
BAUDOUIN (DEUTZ CHD620L6)
Model Name
CHD620L6
Size
-
Weight
-
Product Details
PRODUCT SPEC.
| 기관주요 사양 | ||
| MODEL | CHD620L6 | |
| 형식 | 수냉식 디젤 | |
| 자동방식 | 단독,4행정, L6 | |
| 연속/비상출력 | 950PS | 1032PS |
| 연속최대회전 | 1,800RPM | 1,858RPM |
| 보어*스토로크 | 170*195 | |
| 시동방식 | 전기시동 24V | |
| 냉각방식 제어온도 | 수냉식 (해수,간접식) | |
| 연료분사방식 분사제어방식 | Direct injection | |
| 피스톤 냉각방식 | 오일냉각 | |
| 착화방식 | 압축착화 | |
| 착화순서 | 1-5-3-6-2-4 | |
| 사용연료종류 | 디젤(경유) | |
| 연료 소비율 | 150.7(g/ps.h) | |
| 윤활유 종류 | API CD급 | |
| 윤활유 소비율 | 연료소비량의 0.95% / g/ps.h | |
| 엔진전체 길이 | 2,513mm | |
| 엔진 전폭 | 1.378mm | |
| 엔진 높이 | 2,038mm | |
| 엔진 중량 | 3,200kg | |
| 플라이휠 하우징 | SAE #0 | |
| 배기량 | 27L | |
| 압축비 | 13.5:1 | |
외형치수 / DIMENSIONS
성능곡선 / PERFORMANCE
