PRODUCT SPEC.

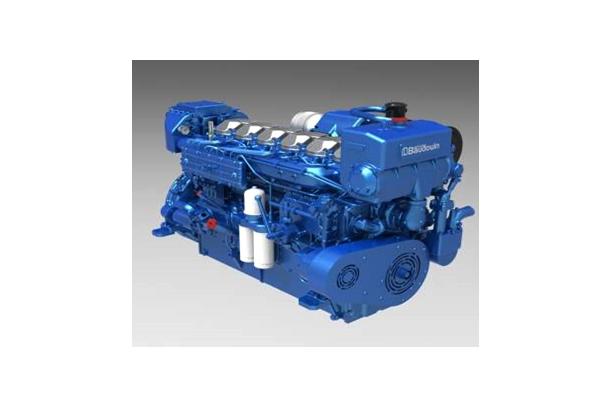

ENGINE MODEL | 6M26.3 (551kW) 750HP / 2100RPM | |||||
P1 | P2 | P3 | ||||
정격출력(Stand-by Power) | HP | 600 | 660 | 700 | 750 | 815 |
KW | 441 | 485 | 515 | 552 | 599 | |
회전수(RPM) | 1,800 | 1,800 | 2,000 | 2,100 | 2,100 | |
실린더수 (No. of Cylinder) | 6 in line | |||||
보어x스트로크(Bore x Stroke) | mm | 150 x 150 | ||||
배기량(Displacement) | cc | 15.90 L | ||||
회전방향(Rotation Direction) | CCW (ISO 1204 standard) | |||||
착화순서(Firing Order) | 1-5-3-6-2-4 | |||||
흡입방식(Aspiration) | 터보과급 후 냉각 (Turbocharged aftercooled) | |||||
연료소비율(Fuel Consumption) | g/KWh | 197 | 207 | 203 | 209 | 216 |
l/h | 103 | 119 | 124 | 137 | 154 | |
공회전속도(Idle Speed) | RPM | 700 | ||||
플라이휠 하우징(Flywheel Housing) | SAE | SAE 1 | ||||
플라이휠(Flywheel) | SAE | SAE 14″ | ||||
해수유입구(Raw Water Inlet Size) | mm | Ø inn 63.5 | ||||
해수배출구(Raw Water Oulet Size) | mm | Ø inn 50 | ||||
배기구 사이즈(Exhaust Pipe Size) | mm | Ø inn 194 / Ø out 205 | ||||
크기(Dimension) (mm) | Length | 2,034 | ||||
Width | 1,078 | |||||
Heigth | 1,239 | |||||
중량 (Weight) | KG | 1,785 | ||||
감속장치 모델 (Reduction Gear Model) | DMT280H | DMT280H | DMT330HL | DMT330DL | DMT330DL | |
감속장치 감속비 (Reduction Gear Ratio) | 2.06-3.26 | 2.06-3.26 | 3.56-4.59 | 3.56-4.59 | 3.56-4.59 | |
(엔진+감속기 셋트 ) Dimension (mm) | Length | 2,450 | 2,450 | 2,450 | 2,560 | 2,560 |
Width | 1,078 | 1,078 | 1,078 | 1,078 | 1,078 | |
Heigth | 1,239 | 1,239 | 1,450 | 1,555 | 1,555 | |
중량 (Weight) | KG | 2,425 | 2,425 | 2,720 | 2,760 | 2,760 |
