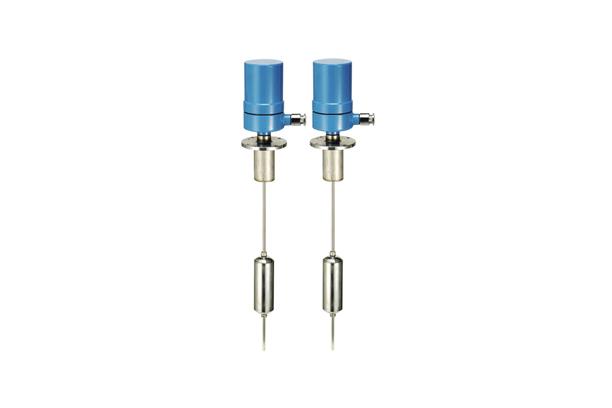

Diaplacement Type Level Switch
Model Name
DM-90□-1F
Series
Diaplacement Type Level Switch
Data
-
Manufacturer information
provider logo
DAEHWA ENGINEERING

Level Switch manufacturer, Level Gauge, Level controller

Problem with product info?
Update request
Manufacturer
DAEHWA ENGINEERING
Brand
-
SKU
118650
Product Name
Diaplacement Type Level Switch
Model Name
DM-90□-1F, DM-90□-1F-C, DM-90□-1F-CT, DM-90□-2F, DM-90□-3F, DM-90□-3F-C
Size
-
Weight
-
Product Details

Operating principle
The spring assists the buoyancy force change created as the liquid rises around the suspended displacer element. A liquid level change will allow a spring movement to operate the switch.
With falling liquid level the lower displacer element has to be uncovered before the switch will reset.


Application
Displacement type level switch are widely used for Coaltar fuel tanks, Heavy fuel oil tanks, Setting tanks, Sludge tanks, Fresh water tanks, Lub.oil tanks, D.O tanks and others.


Technical date
Contact : electrical micro switch, change contact,
SPDT, DPDT
Switch rating : AC 250V/15A, AC 480V/15A,
DC 30V/6A Max. Pressure : 10 Kg/㎠
Max. Temperature : 180 ℃
IP Rating : IP 56
Connecting Size : 5K100A (STD.)
Material - Body, Cover : ALC, SS400
- Flange : SS400, SUS304
- Displacer : SUS304
- Guide Pipe : SUS304


Description of model




DM - 90□ - 1F


DM - 90□ - 1F - C


DM - 90□ - 1F - CT



DM - 90□ - 2F



DM - 90□ - 3F



DM - 90□ - 3F - C
