This product is manufactured by
DAEHWA ENGINEERING

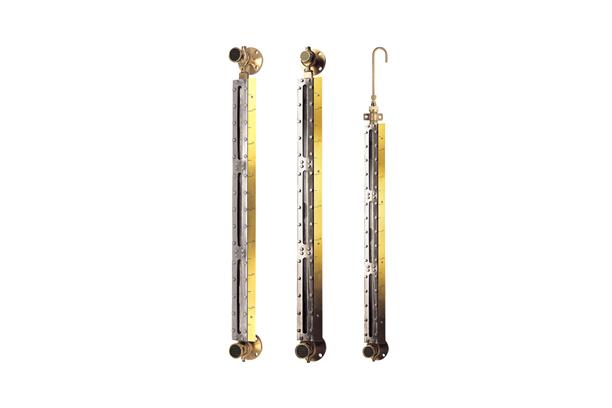

Flat & Reflex Type Glass Level Gauge
Model Name
DLG-F
Data
-
Manufacturer information
DAEHWA ENGINEERING
Level Switch manufacturer, Level Gauge, Level controller
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAEHWA ENGINEERING
Brand
-
SKU
118659
Product Name
Flat & Reflex Type Glass Level Gauge
Model Name
DLG-F, DLG-R
Size
-
Weight
-
Product Details
Flat & Reflex Type Glass Level Gauge
|
|
Flat type Flat type is used for marine oil tanks, excluding hose of flash point of 60℃ below. An excellent observation of colorless liquid level is provided through reflection of several parallel grooved glass. | Reflex Type Reflex type level gauge consists of a rugged body, glass and cover securely fixed by u-bolts to endure high pressure. This type features several parallel grooves cut into the glass surface that is in contact with liquid. |
Model Classification and Specification
| Model | Type | Valve type | Connection size | Design pressure | Max temp′ | Material | Center of Center | |||
| Upper | Lower | Valve | Channel | Glass | ||||||
| DLG-F | A | Self-closing | self- closing | JIS 5K20A,25A | 3㎏/㎠ | 150°C | BC6 | SUS304 | Borosilicate | 275~5100 (m/m) |
| B | Tank return | self- closing | JIS 5K20A,25A | 3㎏/㎠ | 150°C | BC6 | SUS304 | Borosilicate | ||
| C | Top vent | self- closing | JIS 5K20A,25A | 3㎏/㎠ | 150°C | BC6 | SUS304 | Borosilicate | ||
Model Classification and Specification
| Model | Type | Valve type | Connection size | Design pressure | Max temp′ | Material | Center of Center | |||
| Upper | Lower | Valve | Channel | Glass | ||||||
| DLG-R | A | Ball | Ball | ANSI 1”150# | 20㎏/㎠ | 200°C | SUS304 | SUS304 | SUS304 | 320~2870 (m/m) |
| B | Self | Self | SUS304 | SUS304 | SUS304 | |||||
| A | Ball | Ball | ANSI 1”150# | 20㎏/㎠ | 200°C | SUS304 | SUS304 | SUS304 | ||
| B | Self | Self | SUS304 | SUS304 | SUS304 | |||||
DLG - G Series
DLG - R Series
