product Image

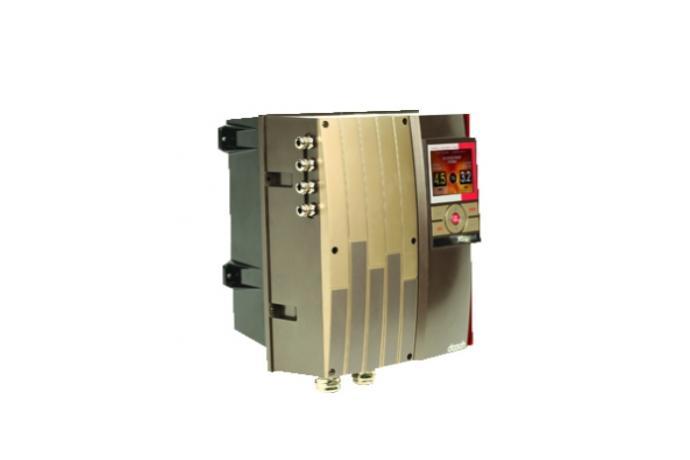

V.F.D.
Model Name
NSQ-DRIVE
Series
VFD & Controllers
Data
ALL-IN-ONE 타입의 지능형 펌프 드라이브
Manufacturer information
provider logo
DOOCH PUMP

Booster pump, Vertical multistage pump, Inline pump, Inverter automatic pump, Submersible pump and more

Problem with product info?
Update request
Manufacturer
DOOCH PUMP
Brand
-
SKU
75358
Product Name
V.F.D.
Model Name
NSQ-DRIVE
Size
-
Weight
-
Product Details


· Motor Power   0.75~22kW (1~30HP)

· Available Power   1PH 200~230V(1~3HP), 3PH 380~440V(1~30HP)

· IP Class   IP55

· Ambient Temperature   -10~+40℃

· External Comm.   RS-485, Internet



Description

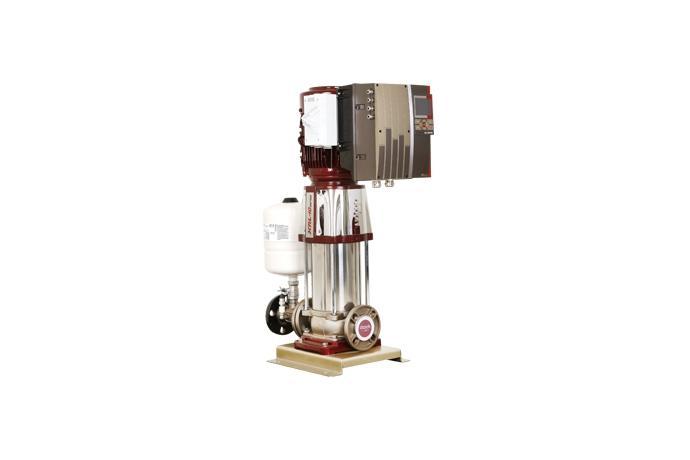

NSQ-DRIVES are pump specific variable frequency drive that manages pump performance to match a wide range of system conditions and requirements.

Adjusting the pump speed is the most efficient means of controlling pump flow and reducing the energy consumption As the drives are self-cooling and motor-independent structure, it can be mounted directly on the motor or on the wall.



Application

Pressure boosting systems

In-line circulation pump systems

For all pumps system requires the pressure/differential pressure control



Features

Energy Savings up to 70%

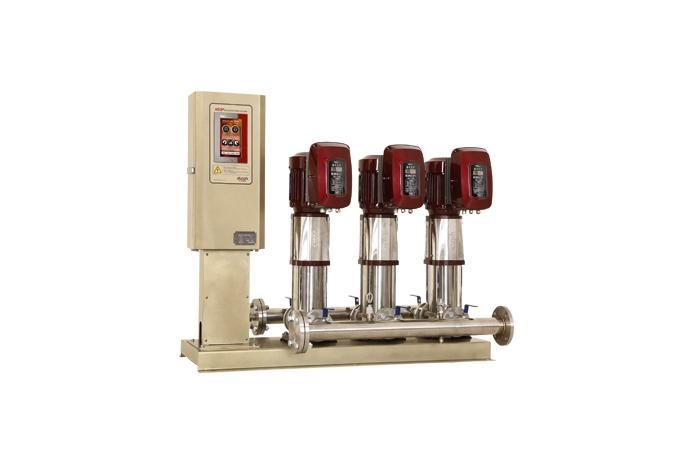

Multi-pump control capacity of up to 6 pumps

Hydraulic control functions included

Electrical and hydraulic pump protections

Automatic recovery after power failure

Easy retrofitting on existing pump system

Flexible installation either directly on a standard I.E.C. motors or on walls
