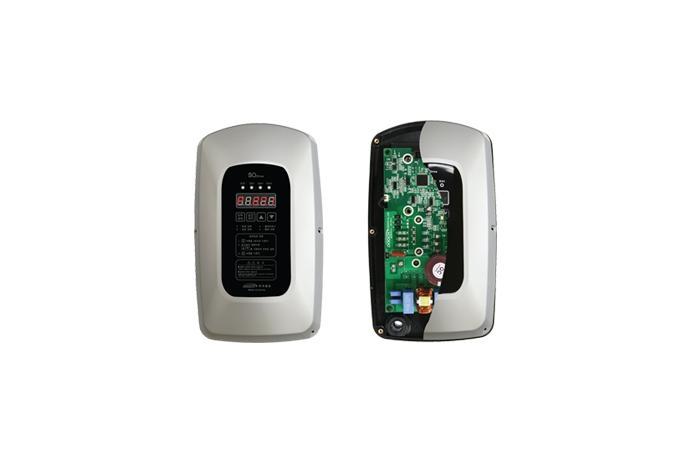

product Image
V.F.D.
Model Name
SQ-DRIVE
Series
VFD & Controllers
Data
ALL-IN-ONE 타입의 지능형 펌프 드라이브
Manufacturer information
provider logo
DOOCH PUMP

Booster pump, Vertical multistage pump, Inline pump, Inverter automatic pump, Submersible pump and more

Problem with product info?
Update request
Manufacturer
DOOCH PUMP
Brand
-
SKU
75359
Product Name
V.F.D.
Model Name
SQ-DRIVE
Size
-
Weight
-
Product Details


· Motor Power   0.55kW ~ 1.1kW (0.75HP~1.5HP)

· Input Power   1PH 220V

· Output Power   3PH 220V

· Main Frequency   50/60Hz

· IP Class   IP55

· Ambient Temperature   -10




Description

SQ-DRIVE is a single phrase variable frequency drive that manages pump performance to match a wide range of system conditions and requirements.

Adjusting the pump speed is the most efficient means of controlling the pump flow and reducing the energy consumption SQ-Drive is a motor-independent structure, it can be mounted directly on the motor or on the wall.



Application

Pressure boosting systems



Features

Stand alone inverter for a single pump

Hydraulic control functions included

Electrical and hydraulic pump protections

Hydraulic control functions included

Easy retrofitting on existing pump systems

Flexible installations(motor, wall)

Small compact design and space saving

FND display for easy status monitoring and programing

DOOCH PUMP
Booster pump, Vertical multistage pump, Inline pump, Inverter automatic pump, Submersible pump and more
As leading manufacturer of energy efficient water pumps/VFD, We are well-known in our industry. We create our products for a number of sectors.Here at Dooch CO., Ltd we pride ourselves on being seen as pioneers in the manufacture of 100% stainless steel water pumps and VFD. Competition in this field is fierce and we are competing against a number of globally-renowned businesses. However, it is our use of high-tech processes and innovative designs all the hallmarks of Dooch, which has set us apart from the rest. It is both our forward-thinking ethos and attention to detail that have helped us work our way up to become world class. Being in this position as a global pioneer of such innovative technology means that Dooch Co., Ltd is able to focus on the things that really matter; that is producing the highest quality, most energy efficient pumps possible. Our pumps/VFD is not only energy efficient, but also long-lasting and very easy to maintain Because we have been able to put quality hand-in-hand with energy efficiency Dooch Co., Ltd is at the forefront of the global pump industry. In short, we are able to offer our customers some of the best pumping solutions available in the world today.
