CARBURIZING FURNACES (ICBP® MONO)
Model Name
ICBP MONO 966
Series
CARBURIZING FURNACES
Data
-
Manufacturer information
provider logo
ECM TECHNOLOGIES
Industrial furnace manufacturer, ICBP, Carburizing furnaces, Vacuum furnaces, Induction furnaces and melting
Problem with product info?
Update request
Manufacturer
ECM TECHNOLOGIES
Brand
-
SKU
131143
Product Name
CARBURIZING FURNACES (ICBP® MONO)
Model Name
ICBP MONO 966, ICBP MONO 1299
Size
-
Weight
-
Product Details

SINGLE CHAMBER FURNACES FROM THE ICBP® RANGE (INFRACARB®) - CARBONITRIDING FURNACE

LPC furnace

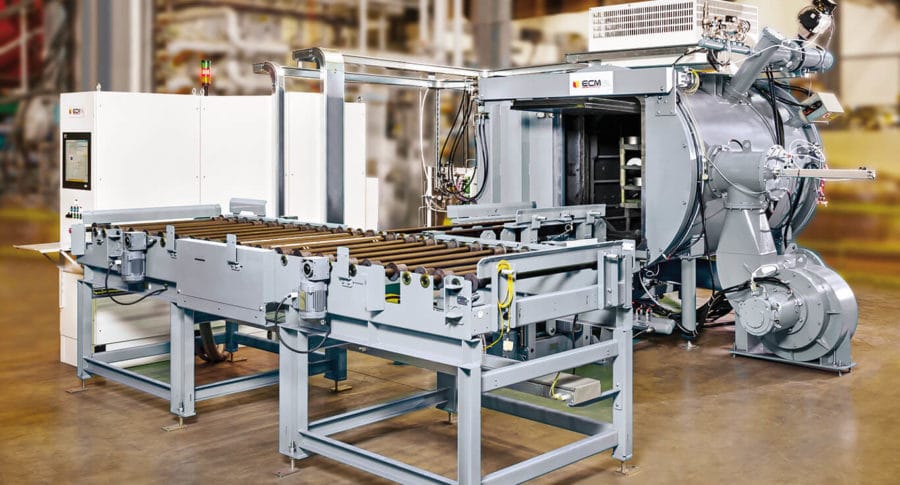

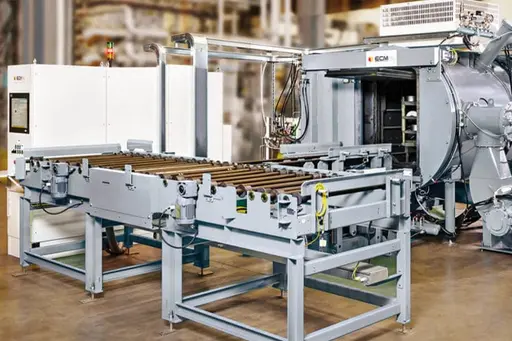

Thanks to their updated design, the low pressure carburizing ICBP® Mono from ECM lets smaller producing units enjoy the benefits of the INFRACARB® process. Indeed, the ICBP® Mono range gathers all of the established and validated solutions offered by other furnaces issued from the ICBP range. Treatment quality obtained by our key accounts specialized in commercial heat treating is now accessible to smaller workshops.



PLUS & BENEFITS

ICBP® Mono furnaces are made of a heating cell using our INFRACARB® process for low pressure carburizing and low pressure carbonitriding. The cooling phase is performed with inert gas in the heating chamber. These installations certify a homogeneous process, an equivalent quality to larger installations and a cost reduction regarding production and maintenance.



POSSIBLE APPLICATIONS

  • Low pressure carburizing
  • Low pressure carbonitriding
  • Quenching
  • Hardening
  • Vacuum annealing
  • Brazing
  • Sintering



EFFECTIVE DIMENSIONS

ICBP MONO 966
ICBP MONO 1299
MORE SIZES AVAILABLE : CONTACT US



OPTIONS

  • Compatible with
  • AMS2750
  • CQI9
  • Inert gas convection
  • Possibility to integrate the furnace and all peripherals within a heat treating line, made of: washing machine, preheating furnace, tempering, storage, transfer system, unloading…
