CARBURIZING FURNACES (ICBP® FLEX)
Model Name
ICBP® FLEX
Series
CARBURIZING FURNACES
Data
Catalog-Ecm technologies-Carburizing furnaces (icbp® flex)
Manufacturer information
provider logo
ECM TECHNOLOGIES

Industrial furnace manufacturer, ICBP, Carburizing furnaces, Vacuum furnaces, Induction furnaces and melting

Problem with product info?
Update request
Manufacturer
ECM TECHNOLOGIES
Brand
-
SKU
131147
Product Name
CARBURIZING FURNACES (ICBP® FLEX)
Model Name
ICBP® FLEX
Size
-
Weight
-
Product Details

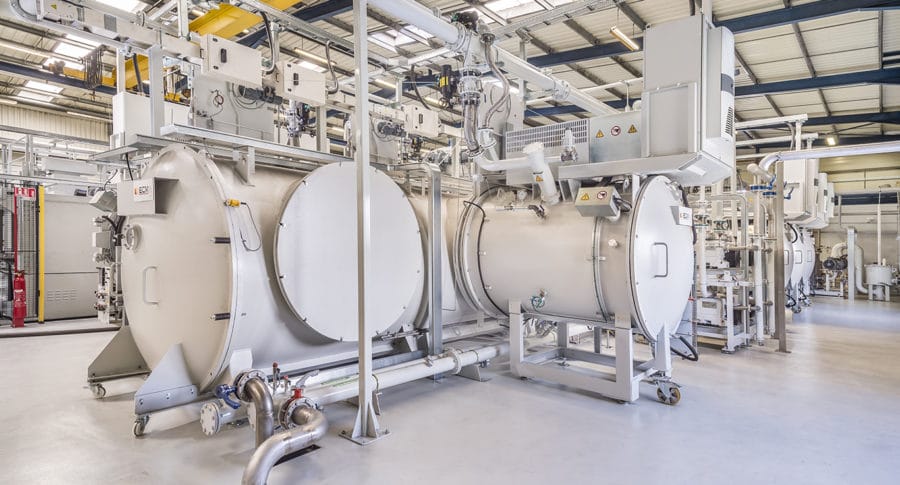

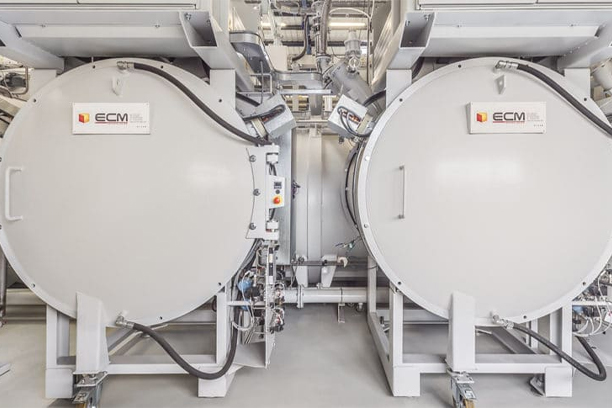

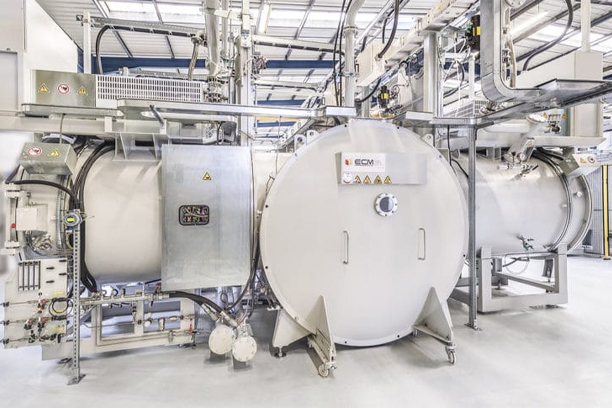

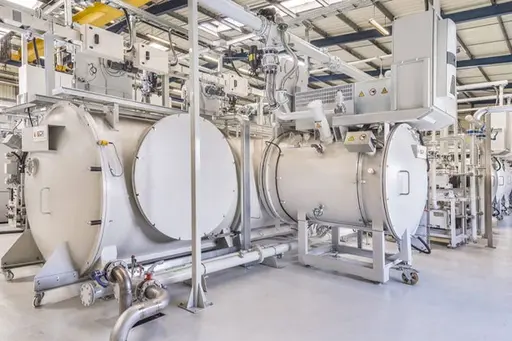

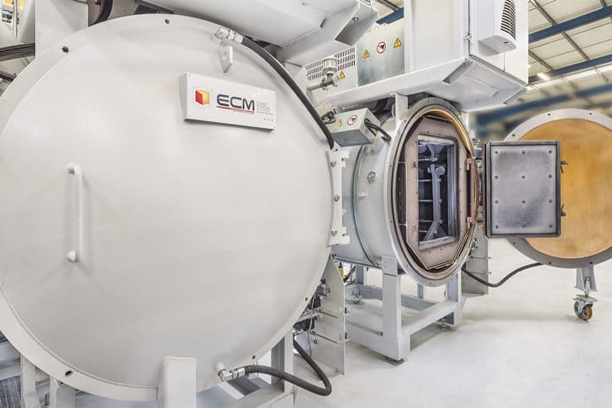

MULTI CHAMBER VACUUM CARBURIZING FURNACE

cémentation trempe - vacuum carburizing furnace

The ICBP® Flex is the most innovative and popular vacuum carburizing furnace solution of the ECM range. The Flex is a robust, reliable and yet simple solution. These assets make it a reference on the market, illustrated by its wide diffusion of over 200 systems in production around the world, and more than 30 years of feedback from customers.

The modular and compact design of the ICBP® Flex has been designed to meet strict requirements in terms of quality and productivity. This modular and multi chamber vacuum carburizing furnace can integrate oil quenching (cold or hot) or gas quenching cells with single or reverse flows (up to 20 bar), as well as a number of heating cells depending on the required production capacity. Convection chambers for tempering are also available.

In addition to this, the ICBP Flex system shows a high level of integration and automation. Indeed, ECM Robotics – a division within the ECM Group – has the skills and experience to integrate robots aiming at optimizing the system’s overall performance.



PLUS AND BENEFITS

A lightweight and insulated transfer robot manages loads from cell to cell.

This modularity ensures the possibility to mix all types of treating recipes with a continuous production flow of loads.

The ICBP® range comprises of 1 to 10 heating cells, from ICBP® 100 to ICBP® 1000.

Adding treatment cells to an existing installation allows the production capacity to be increased at low cost with only a few days of downtime.



POSSIBLE APPLICATIONS

  • Low pressure carburizing
  • Low pressure carbonitriding
  • Case hardening
  • Quenching
  • Tempering
  • Vacuum annealing
  • Brazing
  • Sintering



EFFECTIVE DIMENSIONS

Heating up to 1050°C standard, high temperature available

MORE SIZES AVAILABLE : CONTACT US



OPTIONS

  • Compatible with
    • AMS2750
    • CQI9
  • Inert gas convection
  • 1000 Kg loads
  • Hot oil quenching
  • High temperature
  • Water loop for cooling
  • Quenching gas recovery (for helium)
  • Possibility to integrate the furnace and all peripherals within a heat treating line, made of: washing machine, pre heating furnace, tempering, storage, transfer system, unloading…
    Heating cell for deoiling and dewaxing, high temperature tempering
