VACUUM FURNACES (CRISTAL)
Model Name
CRISTAL 40-60
Series
VACUUM FURNACES
Data
Catalog-Ecm technologies-Vacuum furnaces (cristal)
Manufacturer information
provider logo
ECM TECHNOLOGIES

Industrial furnace manufacturer, ICBP, Carburizing furnaces, Vacuum furnaces, Induction furnaces and melting

Problem with product info?
Update request
Manufacturer
ECM TECHNOLOGIES
Brand
-
SKU
131153
Product Name
VACUUM FURNACES (CRISTAL)
Model Name
CRISTAL 40-60, CRISTAL 40-40
Size
-
Weight
-
Product Details

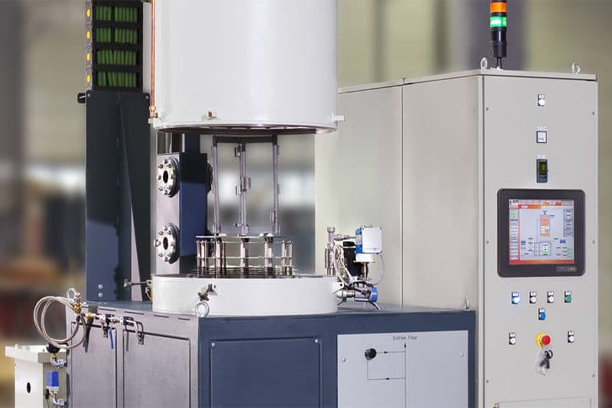

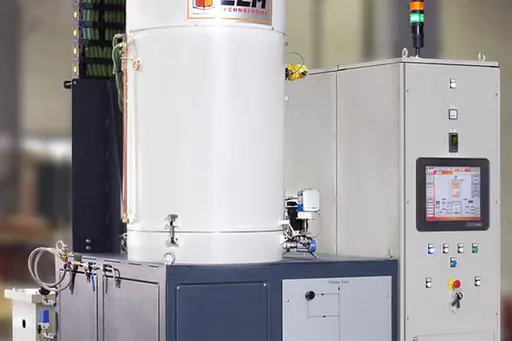

MOLECULAR VACUUM BELL FURNACE FOR HIGH TEMPERATURE TREATMENTS

four cloche

The Cristal range is made of furnaces dedicated to heat treating under vacuum at high temperatures. The enclosure is insulated with specific metals, with a possible choice of molybdenum or tungsten resistors. It is the perfect tool for clean treatments at high temperature. Its design allows precise positioning of loads. The patented resistor design ensures exceptional precision while piloting your process.



PLUS AND BENEFITS

The Cristal range allows to treat pieces under vacuum with a wide range of working temperatures. Indeed, depending on the selected heating elements, working temperatures allow heating up to 2300°C.

In addition to this, Cristal furnaces are adapted to a large scope of applications and provided with clean treatments, at high temperatures. Loading is simplified by an easy access to the hearth, and ensures a precise positioning of parts.

The best treating conditions are then gathered.



POSSIBLE APPLICATIONS

  • Tempering
  • Magnetic annealing
  • Bright annealing
  • Hyper quench hardening under gas
  • Degassing
  • Sintering
  • Glass to metal sealing
  • Metal ceramic brazing
  • Brazing under vacuum
    • Stainless steel
    • Aluminium alloys
    • Super alloys
    • Titanium alloys
    • Refractory metals



EFFECTIVE DIMENSIONS

CRISTAL 40-60
CRISTAL 40-40

Heating up to 2300°C

MORE SIZES AVAILABLE : CONTACT US



OPTIONS

  • Secondary vacuum
  • Wet or dry hydrogen
  • Accelerated cooling
  • Gas panel (Nitrogen, Argon, Hydrogen)
  • Pressure regulation
  • High temperature (>2300°C with graphite heating element)
