Manufacturer of Accumulator, Oil cooler, Sensor
Main function

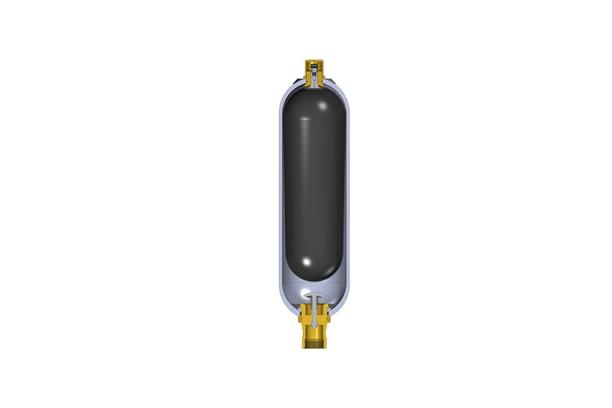

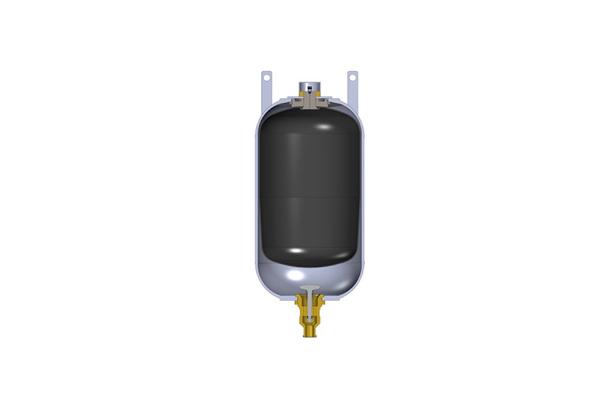

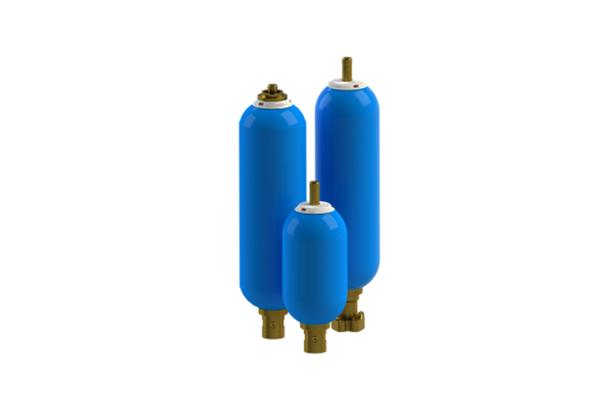

FLOWFORCE Accumulator makes use of the difference in the compressibility of gas(N2) and a liquid(hydraulic fluid).
It is good to be used for hydraulic system, hydraulic equipment and other machinery that utilize fluids can enable the accumulation of pressure.
The main functions are
- Storing energy under pressure
- Absorbing hydraulic shock
- Dampening pump pulsation & flow fluctuations
- Improving system efficiency
Specification
- Max. Working Pressure : 0~330, 350, 690bar
- Volume(L) : 0~60, 200, 575Liter
- Working Temperature : -40 ~ +135℃
- Bladder Material : NBR, Butyl, EPR, Viton, Hydrin(ECO)
- Max. Discharge Flow : 0~900, 4800L/min
Application
HYD. Press M/C Die-Casing M/C Injection molding M/C Steel mill chemical and power plant Substation circuit breakers Vibration test bench Water supply system Breaking system Vessel engine HYD. Power Unit | Machine tools Heavy equipment(Breaker, Concrete pump car) Concrete Compressors, Hydraulic Elevator Water purification system Power sprayer De-Scaling equipment |
Jet fuel injection equipment Water pipes Wastewater pumping system Other pipe lines | Boilers Pressurized water heating system Fire extinguishing system Central heating system |
Technical features
- Selection of a variety of material & inside coating options
- Covering low to high working temperature from -40℃~120℃ (-40℃~120℃)
- Quick discharge/response time (Optional as High flow port)
- Variety of media(water/oil)
- Can be installed vertically or horizontally
