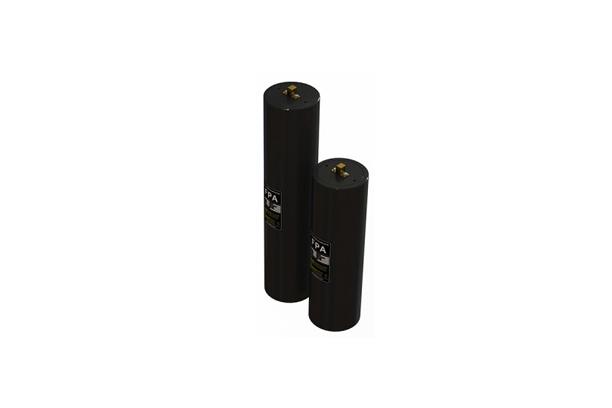

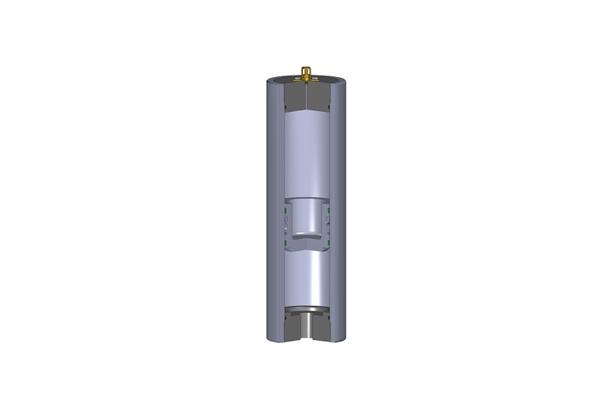

Piston Accumulators
Model Name
-
Series
Accumulators
Data
Catalog-Flow Force-Accumulators
Manufacturer information
provider logo
FLOW FORCE

Manufacturer of Accumulator, Oil cooler, Sensor

Problem with product info?
Update request
Manufacturer
FLOW FORCE
Brand
-
SKU
20237
Product Name
Piston Accumulators
Model Name
-
Size
-
Weight
-
Product Details

Main function

FLOWFORCE Accumulator makes use of the difference in the compressibility of gas(N2) and a liquid(hydraulic fluid).

It is good to be used for hydraulic system, hydraulic equipment and other machinery that utilize fluids can enable the accumulation of pressure.

The main functions are

- Storing energy under pressure

- Absorbing hydraulic shock

- Dampening pump pulsation & flow fluctuations

- Improving system efficiency



Specification

Max. Working Pressure : 0~375bar

Volume(L) : 1 ~ 350 Liter

Working Temperature : -40 ~ +150℃

Piston Material : NBR, Butyl, EPDM, Viton

Max. Discharge Flow : 0~1,250 L/min



Application

HYD. Press M/C

Die-Casing M/C

Injection molding M/C

Steel mill, chemical and power plant

Substation circuit breakers

Vibration test bench

Water supply system

Breaking system

Vessel engine

HYD. Power Unit

Machine tools

Heavy equipment(Breaker, Concrete pump car)

Concrete Compressors

Hydraulic Elevator

Water purification system

Power sprayer

De-Scaling equipment

Jet fuel injection equipment

Water pipe

Wastewater pumping system

Other pipe lines

Boilers

Pressurized water heating system

Fire extinguishing system

Central heating system




Technical features

Measurable Gas volume/pressure (Optional Piston Position Indicator)

Max. compression ratio(P2/P0) and Maximize flow of charging/discharging (Back-up Nitrogen Bottle for accumulators)

Available for the customized volume / pressure(up to 1,200bar)
