FLUTEK

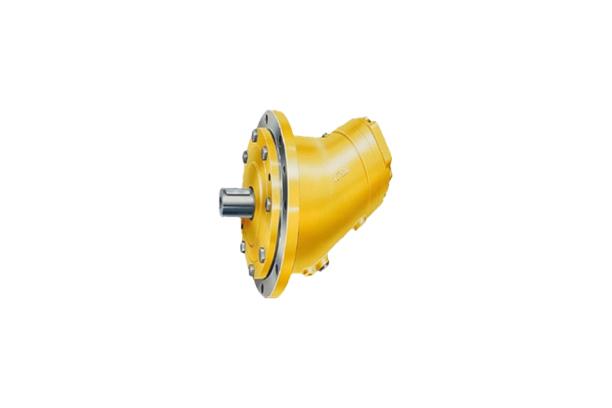

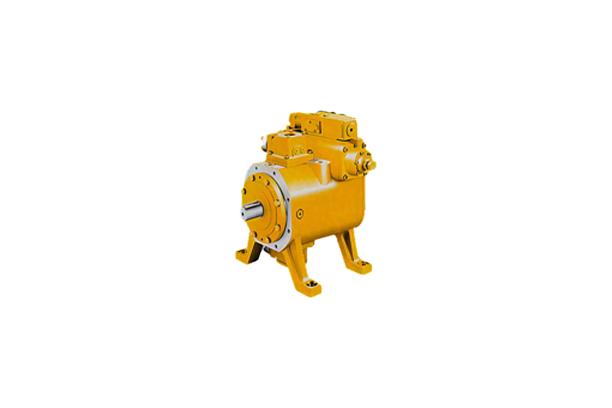

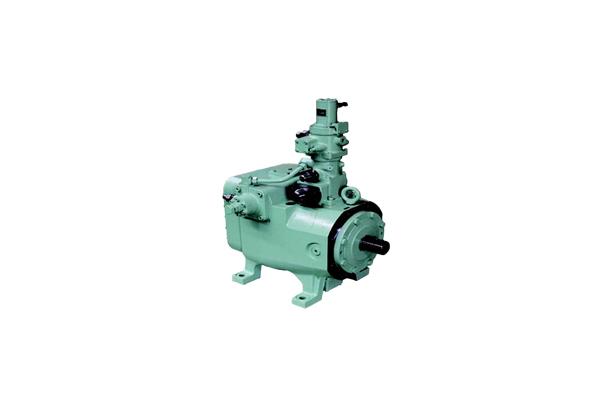

Bent axial piston pump

Model

Series

Industrial Machinery Division

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

LZ LZV/LX PUMP

Features	Benefits
High-pressure/Long life	Optimal for heavy machinery such as iron making machines and press machines
High-efficiency	Even at high pressure, there is little oil leakage inside the pump, so high efficiency is realized.
Low noise	Reduced noise with high rigidity casing structure and independently developed internal device
Variable control type	Abundant control methods such as constant torque type, constant pressure type, and electro-hydraulic flow control

Specification

Size		030	060	090	120	180	260	500
Displacement [cm³]		32.4	63.4	84.3	124	174	260	507
Tilting angle	LZ·LZV	±0~27
Tilting angle	LX·LXV	27
Pressure[MPa]	rated	34.3
Pressure[MPa]	peak	39.2
Speed [min^-1]	max. for self-priming	3,600	2,880	2,620	2,300	2,060	1,800	1,440
Speed [min^-1]	max.	4,500	3,600	3,300	2,900	2,600	2,200	1,800
Theoretical torque [N·m]		177	346	460	675	949	1,417	2,767
GD [kgf·m²]	LZ·LX	0.0087	0.028	0.044	0.083	0.151	0.320	0.947
GD [kgf·m²]	LZV·LXV	-	-	-	0.184 (LZV만 해당)	0.329	0.668	2.010
Moment of inertia about the drive axis [kg·m²]	LZ·LX	0.0022	0.0070	0.011	0.021	0.038	0.080	0.237
Moment of inertia about the drive axis [kg·m²]	LZV·LXV	-	-	-	0.046 (LZV만 해당)	0.082	0.167	0.503
Permissible speed variation [rad/s]		3.1	2.8	2.7	2.6	2.4	2.3	2.1
Mass [kg]	LX	15	27	35	53	66	115	219
	LZ	42	74	101	135	184	310	591
	LXV	-	-	-		135	185	390
	LZV	-	-	-	171	257	372	714
Application		Press machine, Power plant, Offshore etc.
