Features

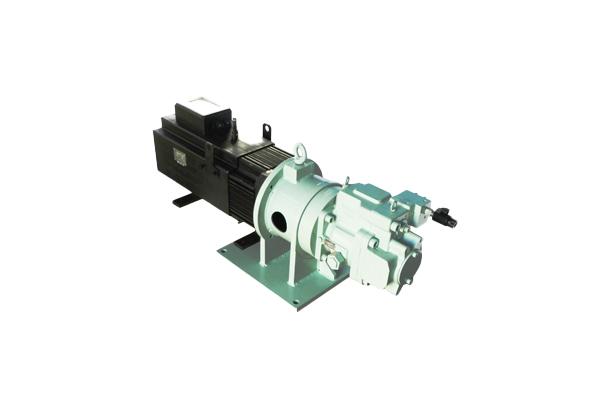

Precise discharge control is possible by controlling the motor rotation speed of the pump
Delicate control of actuators is possible, and energy saving and noise reduction are realized.
Specification
Size | 28 | 45 | 80 | 112 | 140 | 180 | |
---|---|---|---|---|---|---|---|
Displacement [cm3] | Large | 28 | 45 | 80 | 112 | 140 | 180 |
Small | 7 | 11 | 20 | 28 | 35 | 45 | |
Discharge flow [rate L/min] | Large | 56 | 90 | 160 | 224 | 280 | 324 |
Small | 14 | 22 | 40 | 56 | 70 | 81 | |
Pressure[MPa] | rated/peak | 32/35 | |||||
Speed [min-1] | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 1,800 | |
SERVO MOTOR SERVO MOTOR Pressure (25MPa standard) |
Power[kW] | 16 | 24 | 36 | 48 | 68 | 91 |
Rated torque [N·m] | 90 | 135 | 200 | 270 | 385 | 510 | |
Max. torque [N·m] | 145 | 210 | 345 | 465 | 660 | 750 | |
MODEL | ISMG1-16D17 | ISMG1-24D17 | ISMG2-36D17 | ISMG2-48D17 | ISMG2-68D17 | ISMG2-91D17CD | |
SERVO DRIVER | rated current A | 37 | 60 | 75 | 112 | 150 | 210 |
MODEL | IS300T-035C | IS300T-050C | IS300T-070C | IS300T-100C | IS300T-140C | 210 | |
Hydraulic fluid | Based on wear-resistant hydraulic fluid | ||||||
Power voltage frequency | 380~480V, 50/60Hz (Inquire about 200~230V ) | ||||||
Application | Plastic machinery & die casting, Waste treatment, other industrial machinery etc. |
