AC Arc Welder
Model Name
GN-10(220V)
Series
Arc Welder
Data
-
Manufacturer information
provider logo
Gana Connect

Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility

Problem with product info?
Update request
Manufacturer
Gana Connect
Brand
-
SKU
61615
Product Name
AC Arc Welder
Model Name
GN-10(220V)
Size
-
Weight
-
Product Details

More information

1. The high quality silicon steel plate is used to save electricity and reduce no-load noise.

2. The movable core structure is designed and insulation processed to reduce heat and noise.

3. With superior arc stability, good result can be obtained in any welding environment.

4. The high quality insulator is used for superior insulation performance.

5. With a solid structure, it features superior durability.

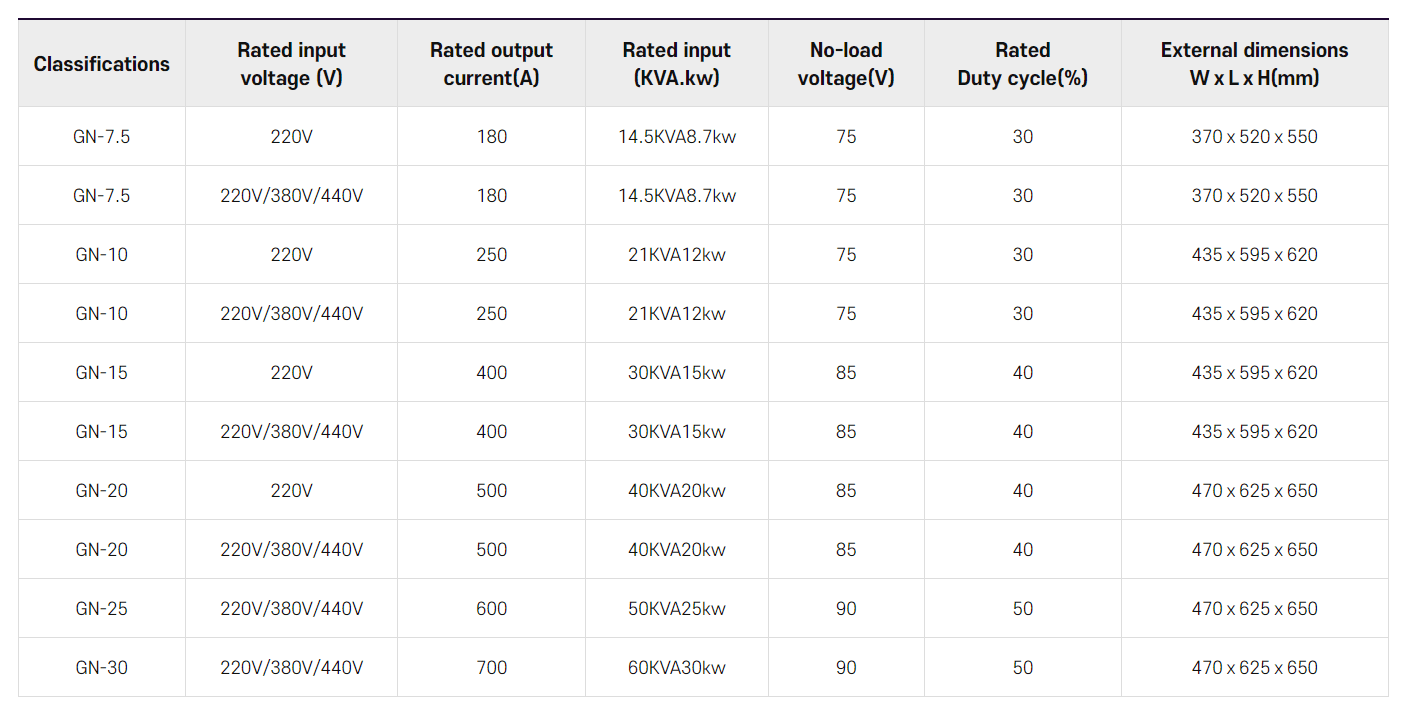

Specifications and Dimensions

Classifications Rated input
voltage (V)
Rated output
current(A)
Rated input
(KVA.kw)
No-load
voltage(V)
Rated
Duty cycle(%)
External dimensions
WⅹLⅹH(mm)
GN-7.5 220V 180 14.5KVA8.7kw 75 30 370ⅹ520ⅹ550
GN-7.5 220V/380V/440V 180 14.5KVA8.7kw 75 30 370ⅹ520ⅹ550
GN-10 220V 250 21KVA12kw 75 30 435ⅹ595ⅹ620
GN-10 220V/380V/440V 250 21KVA12kw 75 30 435ⅹ595ⅹ620
GN-15 220V 400 30KVA15kw 85 40 435ⅹ595ⅹ620
GN-15 220V/380V/440V 400 30KVA15kw 85 40 435ⅹ595ⅹ620
GN-20 220V 500 40KVA20kw 85 40 470ⅹ625ⅹ650
GN-20 220V/380V/440V 500 40KVA20kw 85 40 470ⅹ625ⅹ650
GN-25 220V/380V/440V 600 50KVA25kw 90 50 470ⅹ625ⅹ650
GN-30 220V/380V/440V 700 60KVA30kw 90 50 470ⅹ625ⅹ650
