1. The inverter control method is used for less fluctuation in voltage and good welding performance.
2. Designed for durability and convenience
3. Easy wiring with dual use of 220V / 380 V of input voltage
4. Compact and light weight
5. Adherence of fusing zone is prevented for good start of arc.
With low spatter, high speed welding and short start, it is ideal for an automatic machine.
The smooth and accurate arc start is realized and work efficiency has been improved.
Spatter is reduced and spatter removal time is saved after welding.
The unique arc start security circuit and control circuit are adopted to prevent adherence of fusing to
wire-tip after finishing welding for superior arc start.

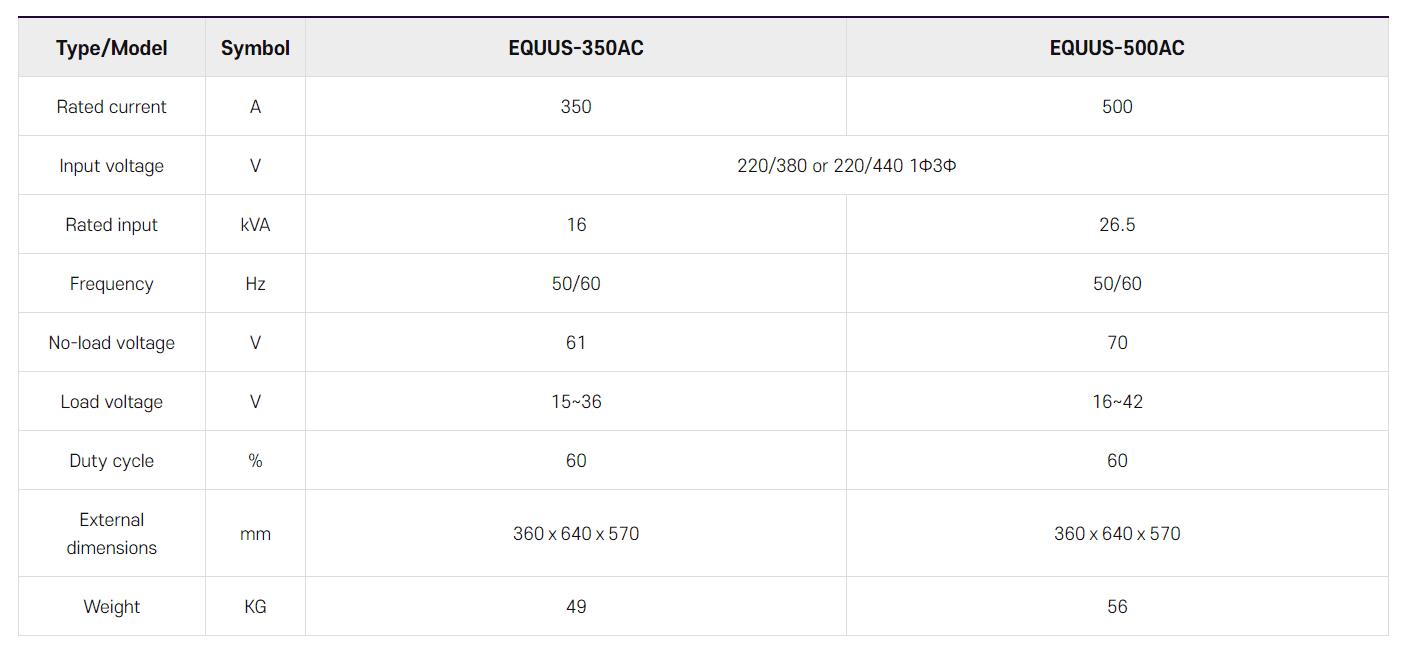

Specifications and Dimensions
| Type/Model | Symbol | EQUUS-350AC | EQUUS-500AC |
|---|---|---|---|
| Rated current | A | 350 | 500 |
| Input voltage | V | 220/380 or 220/440 1Φ3Φ | |
| Rated input | kVA | 16 | 26.5 |
| Frequency | Hz | 50/60 | 50/60 |
| No-load voltage | V | 61 | 70 |
| Load voltage | V | 15~36 | 16~42 |
| Duty cycle | % | 60 | 60 |
| External dimensions | mm | 360ⅹ640ⅹ570 | 360ⅹ640ⅹ570 |
| Weight | KG | 49 | 56 |
