Plasma Welder
Model Name
EQUUS-100PW
Series
Arc Welder
View All
Data
-
Manufacturer information
provider logo
Gana Connect

Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility

Problem with product info?
Update request
Manufacturer
Gana Connect
Brand
-
SKU
61624
Product Name
Plasma Welder
Model Name
EQUUS-100PW
Size
-
Weight
-
Product Details

More information

1. The welding bead is narrower than that of the argon welding, welding speed is twice faster and

penetration is deep.

2. Has less thermal deformation

3. Implements 100% welding start

4. Easy to weld continuously. Optimized to automation and precision work

5. Can input digital and memory type

6. Capable of welding various materials including wrought steel, stainless steel, nickel alloy, copper

and titanium



Function (Common)

It automatically stops when gas pressure, coolant flow or overheat of cooling equipment is detected.

It has a convenient interface of automated equipment.



Options

Pilot, shielding gas control - MFC

Cooling chiller or water cooler

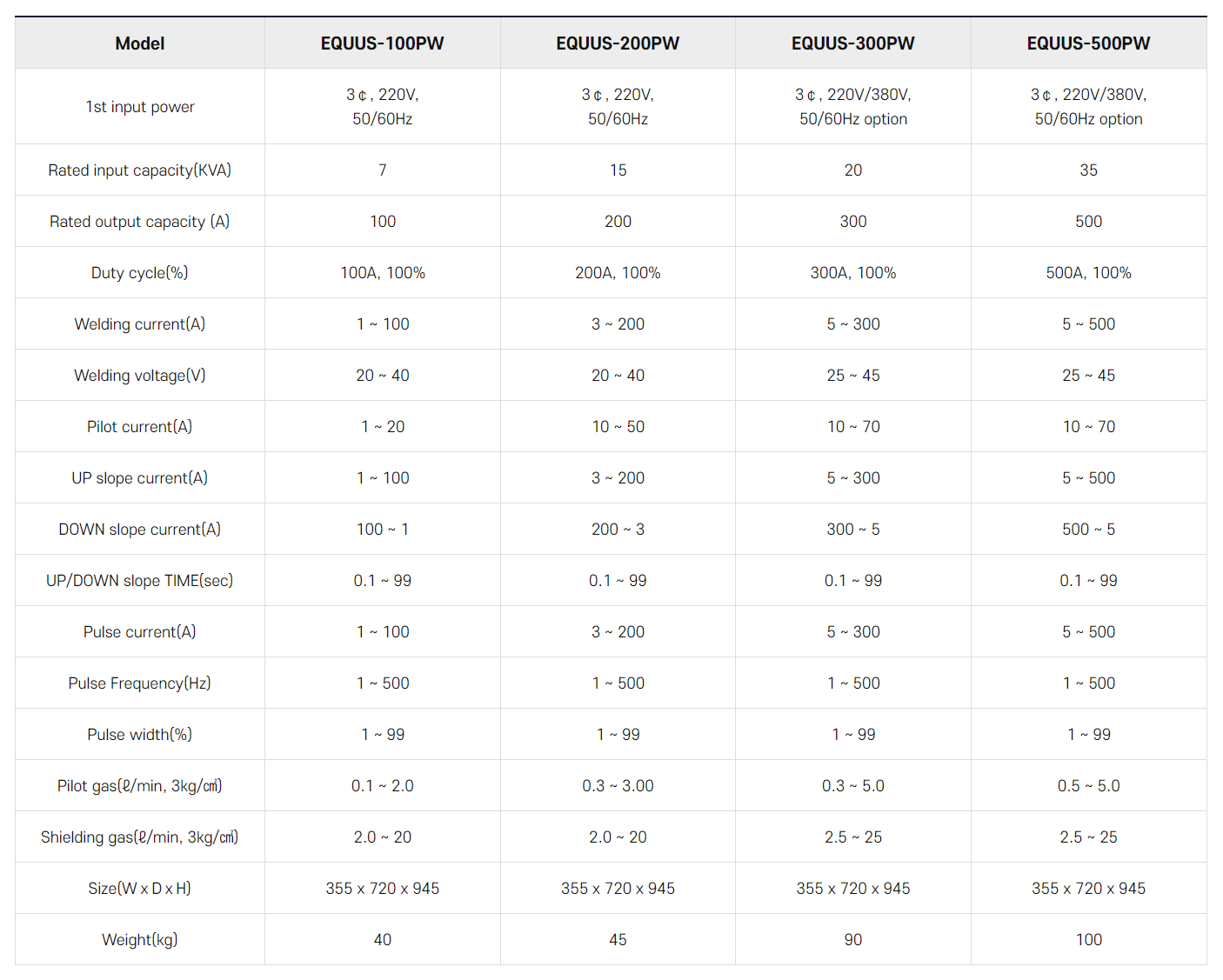

Specifications and Dimensions

Model EQUUS-100PW EQUUS-200PW EQUUS-300PW EQUUS-500PW
1st input power 3￠, 220V,
50/60Hz		 3￠, 220V,
50/60Hz		 3￠, 220V/380V,
50/60Hz option		 3￠, 220V/380V,
50/60Hz option
Rated input capacity(KVA) 7 15 20 35
Rated output capacity (A) 100 200 300 500
Duty cycle(%) 100A, 100% 200A, 100% 300A, 100% 500A, 100%
Welding current(A) 1 ~ 100 3 ~ 200 5 ~ 300 5 ~ 500
Welding voltage(V) 20 ~ 40 20 ~ 40 25 ~ 45 25 ~ 45
Pilot current(A) 1 ~ 20 10 ~ 50 10 ~ 70 10 ~ 70
UP slope current(A) 1 ~ 100 3 ~ 200 5 ~ 300 5 ~ 500
DOWN slope current(A) 100 ~ 1 200 ~ 3 300 ~ 5 500 ~ 5
UP/DOWN slope TIME(sec) 0.1 ~ 99 0.1 ~ 99 0.1 ~ 99 0.1 ~ 99
Pulse current(A) 1 ~ 100 3 ~ 200 5 ~ 300 5 ~ 500
Pulse Frequency(Hz) 1 ~ 500 1 ~ 500 1 ~ 500 1 ~ 500
Pulse width(%) 1 ~ 99 1 ~ 99 1 ~ 99 1 ~ 99
Pilot gas(ℓ/min, 3kg/㎠) 0.1 ~ 2.0 0.3 ~ 3.00 0.3 ~ 5.0 0.5 ~ 5.0
Shielding gas(ℓ/min, 3kg/㎠) 2.0 ~ 20 2.0 ~ 20 2.5 ~ 25 2.5 ~ 25
Size(WⅹDⅹH) 355 x 720 x 945 355 x 720 x 945 355 x 720 x 945 355 x 720 x 945
Weight(kg) 40 45 90 100
