Air Gouging Machine
Model Name
EQUUS-1000A
Series
Arc Welder
Data
-
Manufacturer information
provider logo
Gana Connect

Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility

Problem with product info?
Update request
Manufacturer
Gana Connect
Brand
-
SKU
61625
Product Name
Air Gouging Machine
Model Name
EQUUS-1000A
Size
-
Weight
-
Product Details

More information

What is gouging?

Gouging is a method of blowing off the molten metal with high speed air flow projected horizontally on

carbon metal by creating arc between the electrode and the base metal.

Optimized for removing bead, cutting, grooving (improvement processing) and forming!

Gana Connect Air Gouging Machine EQUUS-1000A

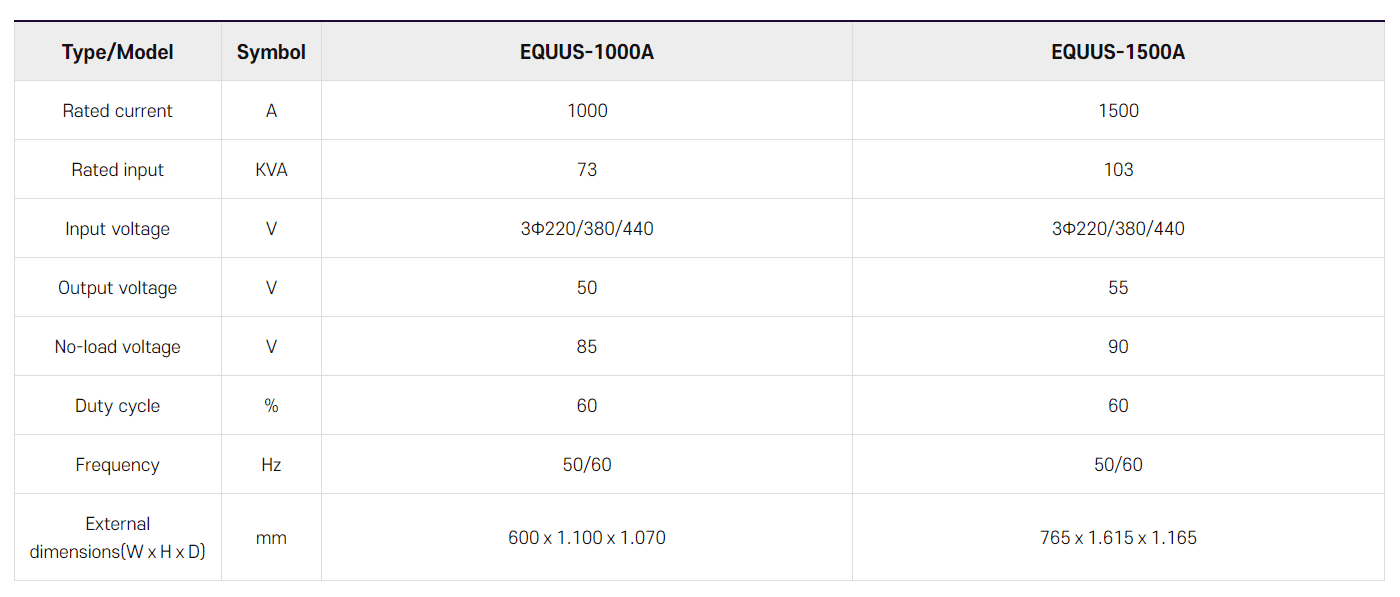

Specifications and Dimensions

Type/Model Symbol EQUUS-1000A EQUUS-1500A
Rated current A 1000 1500
Rated input KVA 73 103
Input voltage V 3Φ220/380/440 3Φ220/380/440
Output voltage V 50 55
No-load voltage V 85 90
Duty cycle % 60 60
Frequency Hz 50/60 50/60
External dimensions(WⅹHⅹD) mm 600ⅹ1.100ⅹ1.070 765ⅹ1.615ⅹ1.165
Gana Connect
Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility
Gana Connect is a company leading welding automation that has endeavored the best to satisfy customers in each business sector of welding automation, welder and bolt business divisions since establishment, November 1998. Gana Connect has the highest proud than any other companies in technology and quality based on our management concepts of the 'highest quality', 'best service' and 'new product development'. To keep up with the latest technological trend in which new technological innovation and new technologies are developed and high quality is implemented, we promise to satisfy customer's' expectations with the best technology and good service system. We will continue to value the relationship from the first purchase, and all employees will strive to become a reliable supplier to customers and contribute to development of business.
