product Image

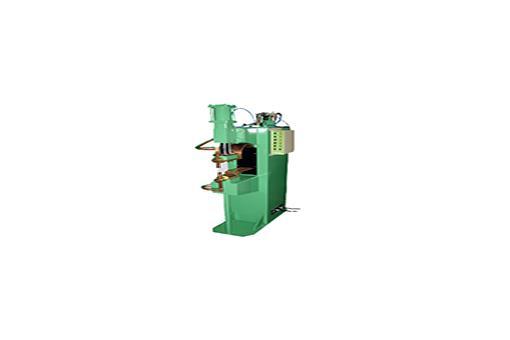

AC Air Spot Welder
Model Name
AC Spot 50 kVA
Series
Resistance Welder
Data
-
Manufacturer information
provider logo
Gana Connect

Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility

Problem with product info?
Update request
Manufacturer
Gana Connect
Brand
-
SKU
61635
Product Name
AC Air Spot Welder
Model Name
AC Spot 50 kVA
Size
-
Weight
-
Product Details

More information

1. Excellent durability of the main transformer

2. Safe design with a solid frame

3. Easy maintenance. For general plate materials

4. Optimized to multi-spot, low input power saving design

5. High precision controller for stable welding performance

Gana Connect AC Air Spot Welder AC Spot 50 kVA

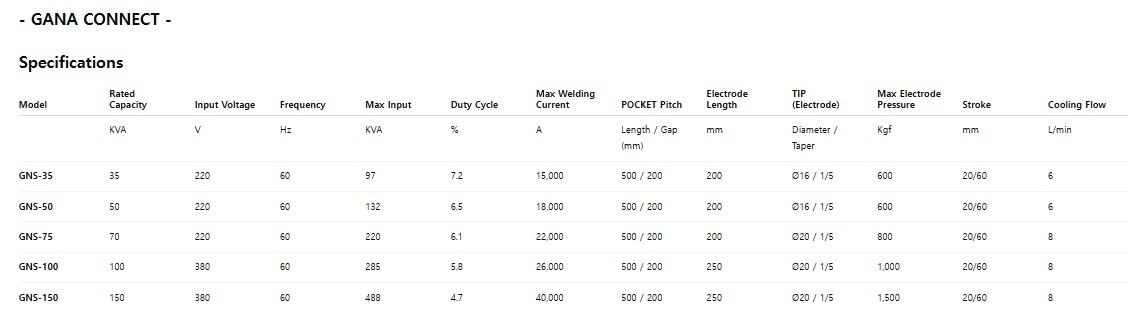

Specifications and Dimensions

Type Rated capacity Input voltage Frequency Max input Permitted duty cycle Max short current

POCKET

Dimensi on

Electrode length Holder
Diameter
Electrode (tip) Max electrode pressure Electrode Stroke Coolant Quantity
Depth Opening Diameter Taper
KVA V Hz KVA % A mm mm mm mm mm   Kgf mm L/MN
GNS-35 35 220

/

380
60 97 7.2 15,000 500 200 200 25 16 1/5 600 20/60 6
GNS-50 50 132 6.5 18,000 500 200 200 25 16 1/5 600 20/60 6
GNS-75 70 220 6.1 22,000 500 200 250 32 20 1/5 800 20/60 8
GNS-100 100 285 5.8 26,000 500 200 250 32 20 1/5 1,000 20/60 8
GNS-150 150 488 4.7 40,000 500 200 250 32 20 1/5 1,500 20/60 8
