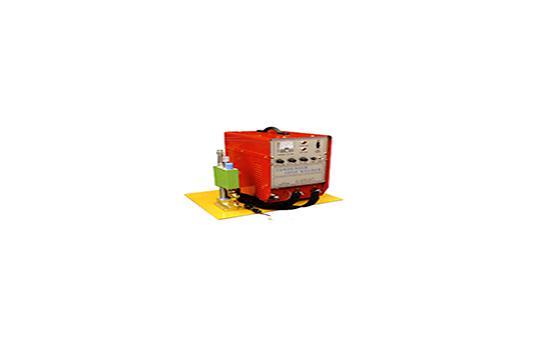

Condenser Spot Welder
Model Name
GN-2
Series
Resistance Welder
Data
-
Manufacturer information
provider logo
Gana Connect

Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility

Problem with product info?
Update request
Manufacturer
Gana Connect
Brand
-
SKU
61637
Product Name
Condenser Spot Welder
Model Name
GN-2
Size
-
Weight
-
Product Details

More information

1. No deformation or discoloration of base metals due to short welding time

2. Capable of stable welding quality irrelevant of change in voltage

3. Suitable for welding small, nonferrous and dissimilar metals

4. Can be operated by household electricity

5. It is suitable for welding copper, alloy, brass, aluminum, aluminum alloy and stainless steel that require high quality, and as welding is performed quickly, fewer tips are consumed, therefore it is much efficient and work efficiency is improved. As the welding current is determined by the charging voltage of the condenser, the welding current is even when the voltage is changed, and due to less distribution of welding strength, good welding quality can be obtained.

Specifications and Dimensions

Type Power
(V)
Frequency
(Hz)
Rated input
(KVA)
Rated output
(W/S)

Condenser

capacity
(UF)

Max electrode pressure
(Kgf)
Welding ability
SUS
(mm)
Max charging voltage
(DCV)
GN-1 1P220V 50/60Hz 1 500 12,000 8 ~ 45 0.4 315V







※​Use welding condenser
GN-2 - 2 800 18,000 200 0.5
GN-3 - 3 1,500 30,000 500 1.0
GN-5 - 5 2,300 48,000 850 1.2
GN-7 - 7 3,000 63,000 1,000 1.6
GN-10 - 10 4,500 96,000 1,000 1.8
GN-12 - 12 6,000 120,000 1,000 2.0
GN-15 3P22V 15 7,400 150,000 2,000 2.3
GN-20 - 20 10,000 210,000 2,000 2.6
Gana Connect
Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility
Gana Connect is a company leading welding automation that has endeavored the best to satisfy customers in each business sector of welding automation, welder and bolt business divisions since establishment, November 1998. Gana Connect has the highest proud than any other companies in technology and quality based on our management concepts of the 'highest quality', 'best service' and 'new product development'. To keep up with the latest technological trend in which new technological innovation and new technologies are developed and high quality is implemented, we promise to satisfy customer's' expectations with the best technology and good service system. We will continue to value the relationship from the first purchase, and all employees will strive to become a reliable supplier to customers and contribute to development of business.
