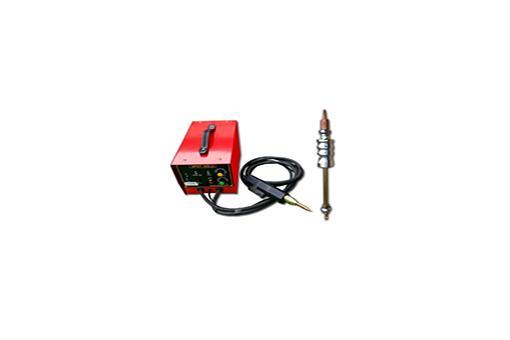

product Image
Vehicle Spot
Model Name
EQUUS-4500
Series
Resistance Welder
Data
-
Manufacturer information
provider logo
Gana Connect

Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility

Problem with product info?
Update request
Manufacturer
Gana Connect
Brand
-
SKU
61638
Product Name
Vehicle Spot
Model Name
EQUUS-4500
Size
-
Weight
-
Product Details

More information

1. This product is optimized for welding vehicle panels.

2. It features various functions such as cross section welding, double side welding, automatic hammer, washer welding, repeated welding, heated procedure, carbon procedure, and balcony welding.

3. Applying the S.C.R. control circuit, it can be much conveniently used.

4. Designed for easy use of the time control and welding current control.

5. EQUUS-4500 is portable.

6. SW-7500 is a distribution model widely used in repair centers.

7. SW-12000 is a large capacity model and has wide applications.

Specifications and Dimensions

Type/Model EQUUS-4500 SW-7500 SW-12000
Input voltage Single phase220V 4.5KVA Single phase220V 7.5KVA Single phase220V 12KVA
Output voltage 1 ~ 8V 1 ~ 8V 1 ~ 8V
Controller S.C.R S.C.R S.C.R
Weight 25KG 57KG 95KG
Insulation type H type double insulation H type double insulation H type double insulation
Welding ability(thickness) 0.8T 1.0T 1.5T
Gana Connect
Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility
Gana Connect is a company leading welding automation that has endeavored the best to satisfy customers in each business sector of welding automation, welder and bolt business divisions since establishment, November 1998. Gana Connect has the highest proud than any other companies in technology and quality based on our management concepts of the 'highest quality', 'best service' and 'new product development'. To keep up with the latest technological trend in which new technological innovation and new technologies are developed and high quality is implemented, we promise to satisfy customer's' expectations with the best technology and good service system. We will continue to value the relationship from the first purchase, and all employees will strive to become a reliable supplier to customers and contribute to development of business.
