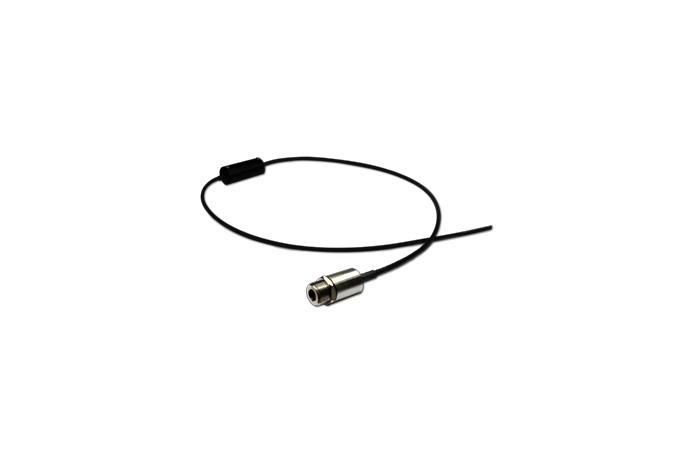

IR-Compact non-contact infrared thermometer measures the infrared wavelength emitted from the target spot and converts it to standard current signal output (4~20mA) and RS-485 communication signal output.
It can measure from -60℃ to maximum 380℃ in the distance of 8:1 D:S (Distance to Spot) Emissivity is 0.10 ~ 0.99 adjustable.
IR-Compact can monitor the temperature in real time in site through its infrared sensor part and signal processing module.
[ Applications ]
Plastics, Fluids, Rubber, Coated components, Asphalt, Wood, Paper, Ceramics, Textiles, Glas, Food etc.
[ Specification ]
Measurement Range | -60℃ ~380℃ |
Device | Thermopile |
Accuracy | ±1% / full scale |
Repeatability | ±1% of reading |
Distance : Spot | 8:1 |
Optical spectrum wave | 8~14㎛ |
Responsive Time | 0.5 sec or below |
Emissivity | 0.10~0.99 |
Analog Output | 4~20mA |
Communication | RS-485 |
Power | DC 12~24V(Max 100mA) |
Ambient temperature(no water cooling) | 0~70℃ |
Temperature Resolution | 0.1℃ |
Operating Relative Humidity | 5~90% |
Operating Ambient Temperature | -30~85℃ |
Waterproof | IP65,NEMA 4 |
Housing material | SUS |
Weight | 285g |
Cable lenght | 1m (standard), other(option) |
[ Code Number IR-Compact-□□□ ]
Model | Description |
IR-COMPACT | |
Code A | D:S |
1 | 8:1 |
2 | 12:1 (Option) |
Code B | Temperature Range |
1 | -60~380℃ |
2 | 0~200℃ |
Z | Other |
Code C | OutPut |
N | 4~20mA |
Code D | Cable Length |
1 | 1m Cable |
Z | Other (option) |
[Optical Field of View ]
