product Image

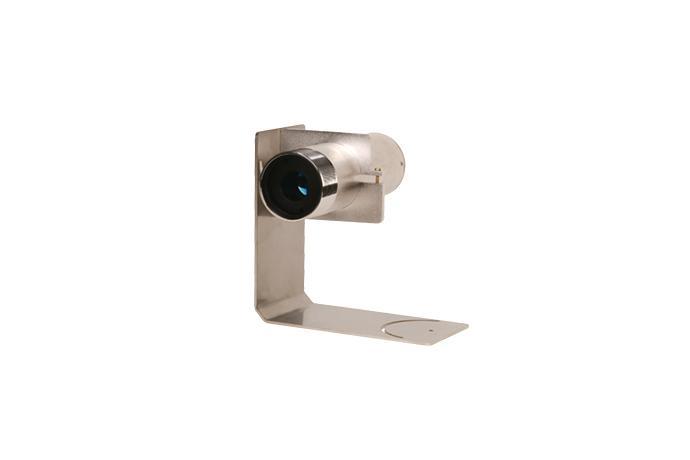

Two color Non-Contact Fixed Pyrometer
Model Name
SS-100
Series
Infrared Thermometer
Data
SS-100 Manual
Manufacturer information
provider logo
GASDNA

Infrared thermometer manufacturer, .Gas measuring device, Gas detector, Smoke detector, Air quality measuring device and more

Problem with product info?
Update request
Manufacturer
GASDNA
Brand
-
SKU
55030
Product Name
Two color Non-Contact Fixed Pyrometer
Model Name
SS-100
Size
-
Weight
-
Product Details

SS-100 two color(Si/Si) non-contact infrared thermometer measures the infrared wavelength emitted from the target and converts it to standard current signal output (4~20mA) or RS-485 communication signal output. It can measure from 800 ℃ to maximum 2400℃ in the distance of 80:1 D:S (Distance to Spot). Emissivity is 0.10 ~ 0.99 adjustable. Two built-in laser pointers can aim at the target.


[ Applications ]
 Plastics, Fluids, Rubber, Coated components, Asphalt, Wood, Paper, Ceramics, Textiles, Glass, Food etc.


[ Specification ]


Range 800℃ ~2400℃
Resolution 1℃
Emissivity 0.1~0.99
Response Time Within 0.1 sec
Accuracy 2℃ or ±1%
Detection sensor 2 Color-Si/Si
Field of View(D:S) 80:1
Wavelength Range 0.8~1.1㎛
Input Power 12V~24V
External Material SUS
Cable 3M




[ Code Number SS-100-□□□ ]


Model Description
Code A Temperature Range
1 800℃~1800℃
2 800℃ ~2400℃
Z Other
Code B Output
M DC 0~20mA
N DC 4~20mA
V Voltage output DC1~5V
Z Other
Code C Cable Length
1 3M
Z Other




[Optical Field of View ]

GASDNA Two color Non-Contact Fixed Pyrometer SS-100

GASDNA
Infrared thermometer manufacturer, .Gas measuring device, Gas detector, Smoke detector, Air quality measuring device and more
We are a specialized developer and manufacturer of combustible, toxic gas detectors and infrared thermometers and are focusing on developing and distributing more convenient and stable gas detectors and infrared thermometers. Based on the technologies and expertise We've accumulated over the last 10 years, we have positioned ourselves as Korea's only infrared thermometer manufacturer. We and we are planning to expand into not only the domestic market, but also overseas markets. Our corporate philosophy is "to maximize the usage value of technology by developing customer-oriented products."  To realize this philosophy, we are operating a system that reflects our customers' needs at the product development stage and the specificity of various use sites.  As a result, we have developed and manufactured efficient and reliable products based on state-of-the-art technologies, and we have become the world's leading company in the gas detector and Infrared thermometer field. We promise that we will continue to devote ourselves to research and development, and will ensure your safety and our product quality in accordance with the quality assurance K mark and ISO9001 quality system to maximize value for our customers.
