product Image

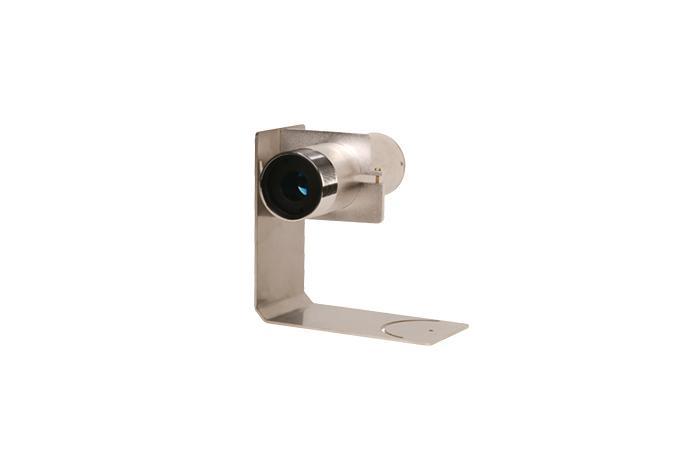

Two color Non-Contact Fixed Pyrometer
Model Name
2IGA-100
Series
Infrared Thermometer
Data
2IGA-100 Maual
Manufacturer information
provider logo
GASDNA

Infrared thermometer manufacturer, .Gas measuring device, Gas detector, Smoke detector, Air quality measuring device and more

Problem with product info?
Update request
Manufacturer
GASDNA
Brand
-
SKU
55029
Product Name
Two color Non-Contact Fixed Pyrometer
Model Name
2IGA-100
Size
-
Weight
-
Product Details


2IGA-100 two color(InGaAs/InGaAs) non-contact infrared thermometer measures the infrared wavelength emitted from the target and converts it to standard current signal output (4~20mA) or RS-485 communication signal output. It can measure from 400 ℃ to maximum 1200℃ in the distance of 80:1 D:S (Distance to Spot). Emissivity is 0.10 ~ 0.99 adjustable. Two built-in laser pointers can aim at the target.


[ Applications ]
 Aluminum, Chrome, Copper, Metal, Magnesium, Oxide-nickel, Platinum, Gold, Silver, Oxided-Titanium, Zinc, Tin, Steel, Oxided- Steel, Oxided-Brass




[ Specification ]


Range 400℃ ~1200℃
Resolution 1℃
Emissivity 0.1~0.99
Response Time Within 0.1 sec
Accuracy 2℃ or ±1%
Detection sensor 2 Color-InGaAs/InGaAs
Field of View(D:S) 80:1
Wavelength Range 1.0~1.5 µm
Input Power 12V~24V
External Material SUS
Cable 3M




[ Code Number 2IGA-100-□□□ ]


Model Description
Code A Temperature Range
1 300℃~700℃
2 400℃ ~1200℃
Z Other
Code B Output
M DC 0~20mA
N DC 4~20mA
V Voltage output DC1~5V
Z Other
Code C Cable Length
1 3M
Z Other




[Optical Field of View ]

GASDNA Two color Non-Contact Fixed Pyrometer 2IGA-100
