By rotary cutting system, superiority of cutting capacity makes Q-Cutters perform cutting on the most of films also clean-cutting on the PET based films up to 500mic.
Most of the GMP laminators can be connected to Q-Cutters perfectly and provide the optimal solutions to large volume of output like advertising materials including posters etc.
Key features of PROTOPIC III-540 series
- Full-automatic cutter suitable for laminating service shop and industrial laminating process
- Microprocessor controlled for precise cutting
- Excellent cutting performance by specially designed round cutter automatically
- Marginal cutting function through separate allocation to front / rear margin space in posivive (+) and negative (-)
- Repeated cutting availabe with regular length from 5mm to 5m
- Speed control synchronized with Dancer roll position
FEATURES of Q-CUTTER series
- Compact design allows installation in small space
- Various sorts and sizes of laminated film can be cut
- Easy use for non-professionals by user-interface control panel
- Cut-counting device installed
- Various thickness to be cut from thin type to thick one.
- Scrap basket included
APPLICATION of Q-CUTTER series
- Poster
- Placemats
- Advertising Poster

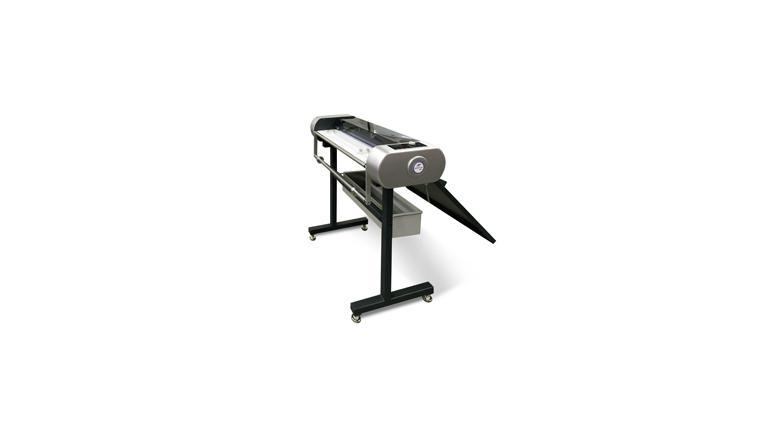

Easy Cutter-550 which is designed as a cost-economic easy & convenient cutting-finish solution for POD lamination features Auto-cutting system with the max. cutting width of 550mm and the user-friendly capabilities of auto-adjustment for cutting length/cutting speed/cutting margin.
Also as being with the design concept for moving-freely with ease by compact body structure as well as for stable durability, it offers every customer the opportunity of comfortable experience in operating
Easy Cutter-550 in any moment.
KEY POINTS of EVOLUTION for EASYCUTTER-550
- Auto-cutting system & Auto-adjustment for cutting length, cutting speed & margin.
- Touch control panel for easy use
- Easy & convenient movement by compact body structure with durability
- Safety shield for user protection purpose while laminating
- Cost-economic & easy operation cutting system for POD lamination
FEATURES of EASYCUTTER-550
- Compact design allows installation in small space
- Various sorts of Substrates can be cut
- Easy use for non-professionals by user-interface control panel
- Various thickness to be cut from thin type to thick one.
- Scrap basket included
- Stacker included
APPLICATION of EASYCUTTER-550CUTTER
- Poster
- Place mats
- Advertising Poster
- Gift & Greetings Cards
[Patent Specification]
1.The method of forming embossing pattern by heating press mold partially on the printing surface laminated with thermal laminate film
2.Laminator with paper device
3.Device for adjusting the position of film rolls in laminators
Special Features

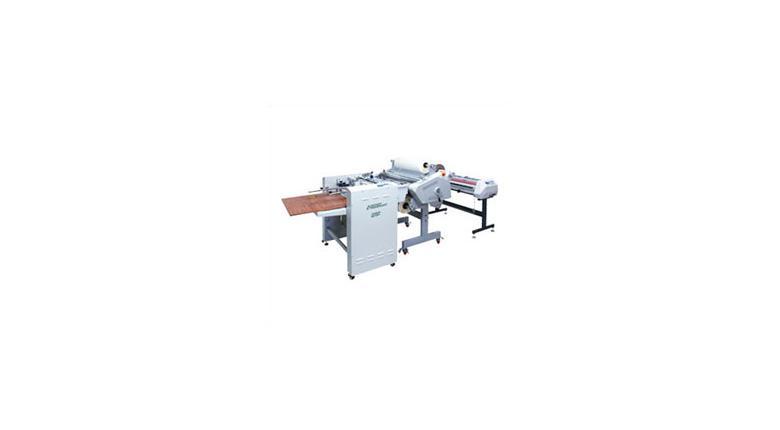

Automatic Encapsulating Laminating Machine | Automatic feeding and cutting, Side Slitter and Rewinder For Encapsulating Processing Shop and Printing Shop
▶ Maximum laminating speed of 10m/min
▶ Automatic feeding for off-set and Digital printing system
▶ High quality Double side LAMINEX Solution for mass Production with Automatic cutting
▶ Full Automatic Double side Laminating System for Lamination service shops or print shops
▶ Complete laminating solution for all kinds of digital print systems on-demand
▶ Minimize heat-transformation and maximize adhesiveness with GMP's own "Dual Heating System"
▶ Convenient operation for Interlink combination of Q-Feeder and Q-Cutter and Laminator
▶ Compact design allows installation in small space (1,340 x 3,340 x 1,140)
▶ Equipped with strong cooling system for high speed lamination
▶ Available various operation for inline slitter and rewinder equipped
Trade Roll Laminator
▶ AUTOEXCEL-R800
- Equipped with strong cooling system for high speed lamination
- Complete laminating solution for all kinds of digital print systems on-demand
- Minimize heat-transformation and maximize adhesiveness by complex heating system
of heat plate and hot rollers
- Available various operation for inline slitter and rewinder equipped
- Memory function to save 9 kinds of laminating condition
- Loading capacity of big volume film (Max dia 300mm) for mass operation
▶ Q-FEEDER 800
Full automatic feeder for laminating services & print shops
1. Paper Length : 297~1,000mm
2. Paper Width : 210~800mm
3. Max. Loading Height : 430mm
4. Max. Feeding Speed : 10m/min
5. Feeding Interval : -15~100mm
▶ Q-CUTTER 800A
Full automatic cutter for laminating services & print shops
1. Min. Cutting Length : 100mm
2. Cutting Margin : -25~25mm
3. Max. Cutting Speed : 15m/min
