Roll-to-Roll solution which can be integrated with LAMIMASTER-IDH 34 series
Electrical signal interface for In-Line configuration.
Pneumatic type touch roller for perfect rewinding.
- Automatic winding tension controlled by servo motor, in accordance with winding roll's diameter.
- Paper Roll lifting arm operated by Induction motor.
- Aluminum air expanding core shaft.
- Various thicknesses & materials (papers, films and etc.) of media are applicable
- Wallpaper
- Packaging paper
- Gift wrapping paper
- Kraft paper
- Various graphic paper
Ultra-higher-productivity-focused auto cutting system with easy & convenient features by ergonomically friendly design & technology.
synchronized cutting system.
WALLPAPER WINDER 60, as a coreless system for winding various qualities of substrates such as gift wrapping papers, kraft papers as well as wall papers, is an ideally optimized machine for the industry areas requiring full-automatic slitting & winding process for the substrates at high speed.
It brings users satisfactory & perfect output.
KEY POINTS of INVENTION for CORELESS(for WALLPAPER) WINDER-60
- Coreless type winding system removing any needs for using cores.
- Precise control by PLC & Servo system with Superior Reliability
- Expandability for connection to other machines ;
- Buffer capacity for speed synchronization with other machines is 2meters and, system operation is controlled by the position of buffer.
- Control signals for operation - "GET READY", "READY", "ERROR" etc.
- Emergency Stop- Emergency Stop, interface of interlock signal is possible.
- Cut-rolls to come out through conveyor and be connected to packaging lines also.
FEATURES of WALLPAPER WINDER-60
- In the case of WALLPAPER WINDER 60 being connected to Lamimaster via printer, one-pass processing from printer to final output can be carried out perfectly.
- All the devices to operate positioned on the front section (operating side) for convenient operation and all easy adjustment ;
- Pile-up of papers, installing film rolls, web threading, laminating, Photo embossing, Decurling, Cutting,Pressure control of each roller, Film tension control, Film position adjustment, Swivel-mount control panel.
- In order to be in line with paper position, lateral alignment of film position can be done.
- More sized-up display screen makes visibility and operationalization more superior
- By stream feeder being installed & super-high pressure cylinder being used, large volume of output comes out at high speed.
APPLICATION of WALLPAPER WINDER-60
- Wallpaper
- Packaging paper
- Gift wrapping paper
- Kraft paper
- Interior sheet paper
- Various graphic paper
54 DUAL G10P
54 DUAL G10P ST50
54 QUATRO G10P
54 QUATRO G10P ST50
54 QUATRO-SLIT G10P
54 QUATRO-SLIT G10P ST50
80 DUAL G10PJ
80 DUAL G10P ST80
80 QUATRO G10PJ
80 QUATRO G10P ST80
80 QUATRO-SLIT G10PJ
80 QUATRO-SLIT G10P ST80
LAMIMASTER-IDH 34
LAMIMASTER-IDH 34 SHIN
LAMIMASTER-IDH 60

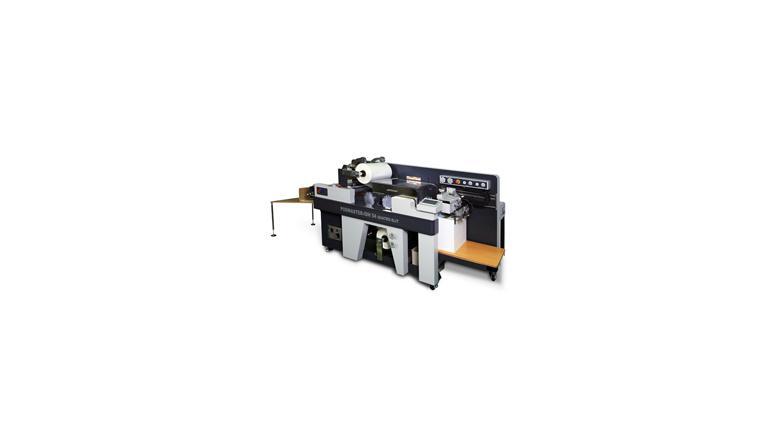

Automatic In-line Laminator
Paper Width : 200 ~340 mm
Dimension(mm) : 1050mm(W) X 2724mm(L) X 1720mm(H)
[Patent Specification]
1.The method of forming embossing pattern by heating press
mould partially on the printing surface laminated with thermal laminate film
2.Laminator with paper device
Special Features
▶ Roll to Roll Lamination
▶ Double Decurling System (Decurling Bar & Water Decurling)
▶ Photo Quality Embossing Effect
▶ Induction Heating Roller System
