SPECIFICATION

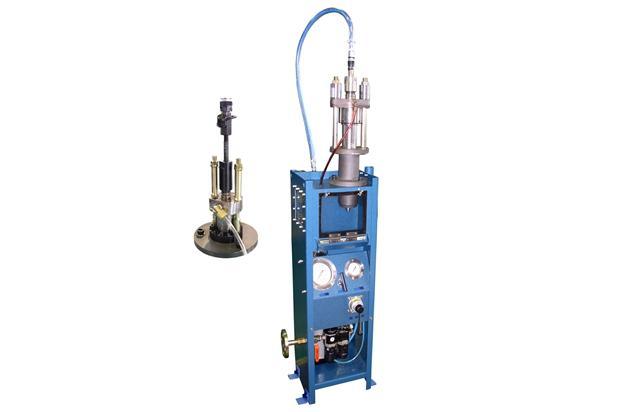

This type of test rig is now standard maintenance equipment for new MAN Diesel Fuel valves (Conical type/Slide type)
▸Test of fuel injectors from 2-and-4-stroke engines
▸One unit test all fuel-injection valves aboard (L/S35MC~K90MC) / Wӓrtsilӓ
▸The unit powered by air, and delivers a maximum hydraulic pressure of 600bar/60Mpa. (at air pressure 6bar/0.6Mpa)
▸Analogue gauge, readings class 1.0
▸The following test control procedures can be performed :
∙Opening pressure
∙O-ring seal Test
1. MODEL NO. : VTU-600
2. OUTPUT PRESSURE : 600BAR / 60Mpa AT 6BAR / 0.6Mpa AIR INPUT
3. AIR CONSUMPTION : 0.03N㎥ / STROKE (AIR PRESSURE 6BAR / 0.6Mpa)
4. ISSUE QUANTITY : 20CC / STROKE
5. OIL TANK CAPACITY : 1.1 LITER
6. GAUGE : ANALOGUE / CLASS 1.0
7. WEIGHT : 80 KG
8. DIMENSION : 420 X 290 X 1826
