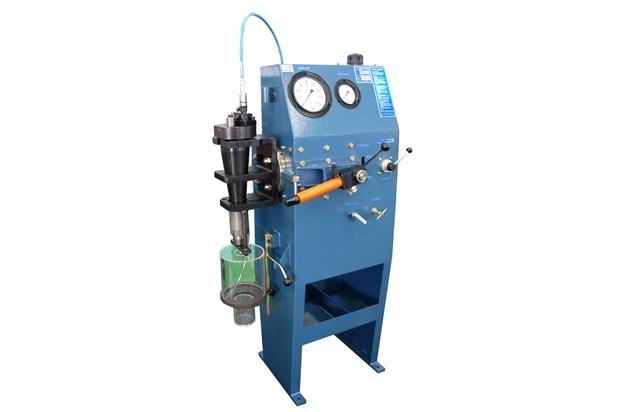

Fuel Valve Test Device
Model Name
VTU-2000
Series
Fuel Valve Test Device
Data
-
Manufacturer information
provider logo
HANMI HYDRAULIC MACHINERY

Manufacturer of oil pressure machinery in vessel engine, high pressure pump unit, fule valve test device and more

Problem with product info?
Update request
Manufacturer
HANMI HYDRAULIC MACHINERY
Brand
-
SKU
90391
Product Name
Fuel Valve Test Device
Model Name
VTU-2000
Size
-
Weight
-
Product Details

SPECIFICATION

▸Test of fuel injectors from 2-and 4-stroke engines.

▸ Compatible with valves from Wӓrtsilӓ and others


▸ One unit test all fuel-injection & most engine safety valves aboard a vessel

▸ The following test control procedures can be performed :

․Opening pressure

․Atomizing of fuel valve

․Leakage of fuel valve

․Dismantling and Assembly of cap nut



1. MODEL NO : VTU - 2000


2. OUTPUT PRESSURE

PUMP "A" : 900bar AT 7bar AIR INPUT

PUMP "B": 1400bar AT 7bar AIR INPUT


3. AIR CONSUMPTION

PUMP "A: 44 LITER / CYCLE AT 7bar AIR INPUT

PUMP "B": 460 LITER / MIN. AT 7bar AIR INPUT


4. MAX. FLOW AT NO PRESSURE

PUMP "A": APPROX. 1.2 LITER / MIN. AT 7bar INPUT

PUMP "B": APPROX. 0.35 LITER / MIN. AT 7bar INPUT


5. DISPLACEMENT PER CYCLE

PUMP "A": 17.2㎤

PUMP "B": 0.47㎤


6. PUMP SPEED

PUMP "A": APPROX. 60 CYCLE / MIN. AT 7bar AIR INPUT

PUMP "B": APPROX. 743 CYCLE / MIN. AT 7bar AIR INPUT


7. OIL TANK CAPACITY : APPROX. 6 LITER


8. WEIGHT : APPROX. 135kg


9. DIMENSION : 795mm X 600mm X 1700mm

HANMI HYDRAULIC MACHINERY
Manufacturer of oil pressure machinery in vessel engine, high pressure pump unit, fule valve test device and more
Established on July, 1985 and located in Busan, Korea, Hanmi Hydraulic Machinery Co., Ltd. hires a staff of 70 persons and specializes in manufacturing the oil-pressure machinery used in vessel engines. Maintaining great partnership relations with the nation's industry-leading companies including Hyundai Heavy Industries, STX Metal and Doosan Engine, Hanmi has been providing the world-class quality products based on its extensive experiences and technologies and currently exports about 10 percent of the products manufactured. With the total revenue of approximately 30 billion(KRW) recorded last year, Hanmi has patents to seven utility models and nine design models and has acquired a variety of noted quality standards and certifications such as the ISO9001 Quality Management Systems in 2003, the Single PPM Quality Certifications in 2007, and the ISO14001 Environmental Management Systems in 2011. The company also has been making continued efforts to develop and introduce new technologically-advanced and price-competitive products to the markets at home as well as other regions of the world including Japan, China, Europe.
