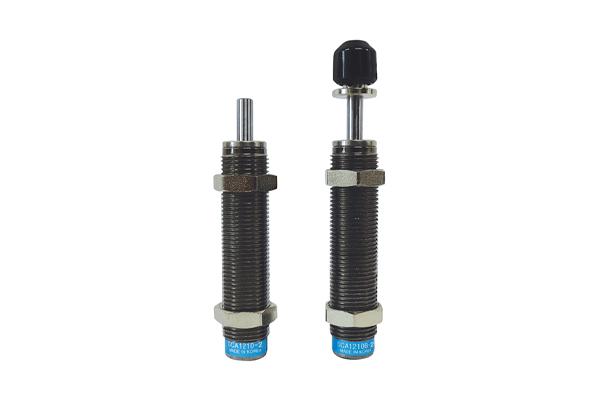

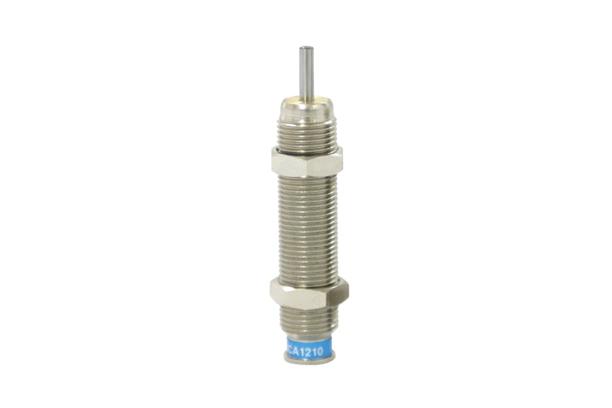

Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series
Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
SCA1210 | 10 | 63 | 53 | 10 | 4 | 5 | 3 | - | M12×P1.0 |
Capacity Chart
Model | S Stroke 행정 | E c Total Energy 총에너지 [Max] (Nm) | E d Total Energy per hour 시간당총에너지 [Max] (Nm/h) | W e Effective Weight 중량효과치 [Min][Max] (Kg) | F Shock Force 충격력 [Max] (N) | F Return Force 복귀력 [Min][Max] (N) | Weight 중량 (g) |
SCA1010-1 SCA1010-2 | 10 | 8 | 14,000 | Less 8 Less 16 | 1,050 | 5~10 | 40 |
Technical Data
Special steel piston rod
