Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series

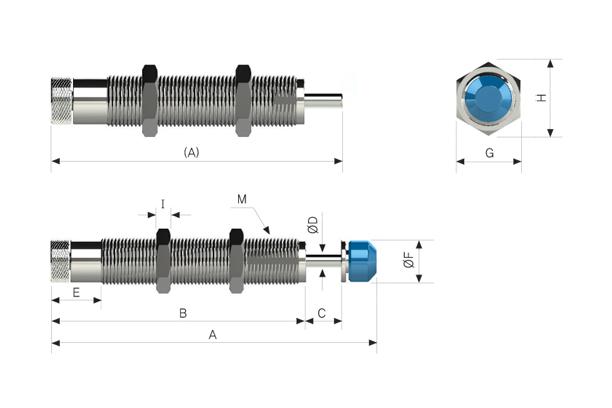

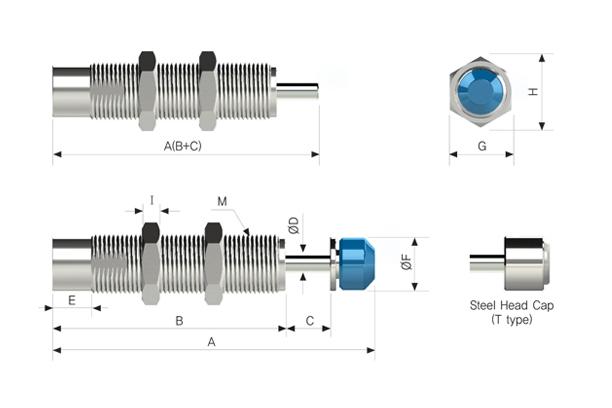

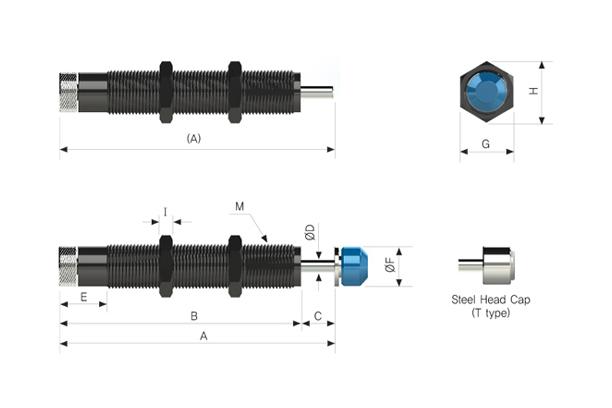

Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | H | ØI | ØJ | Weight |
CSC30 | 30 | 209 | 35 | 158 | 8 | 16 | 25.4 | 23.8 | 20 | 8 | 16 | 350 |
Capacity Chart
Model | S | Propelling Force 추진력 (N) [Min] | Propelling Force 추진력 (N) [Max] | Return Force | Return Force 복귀력 (N) [Max] | Return Time 복귀시간 (Sec) | Max Acceptance Angle 최대허용각도(℃) | Remark |
CSC30 | 30 | 30 | 3,500 | 20 | 30 | 1.2 | 1.5 |
Technical Data
1. Material : Steel body with nickel plating finish, special steel piston rod with Chromium plating.
2. Range of Impact Velocity : 0.01m/s~0.65m/s
3. Ambient Temperature : -10~60℃
4. Adjustment : Adjustment knob located at rear. "0" is soft and "30" is hard.
Precaution
1. Don't turn piston rod. The seal will be damaged if turned.
2. Piston rod and colliding object must be perpendicular.
