Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series

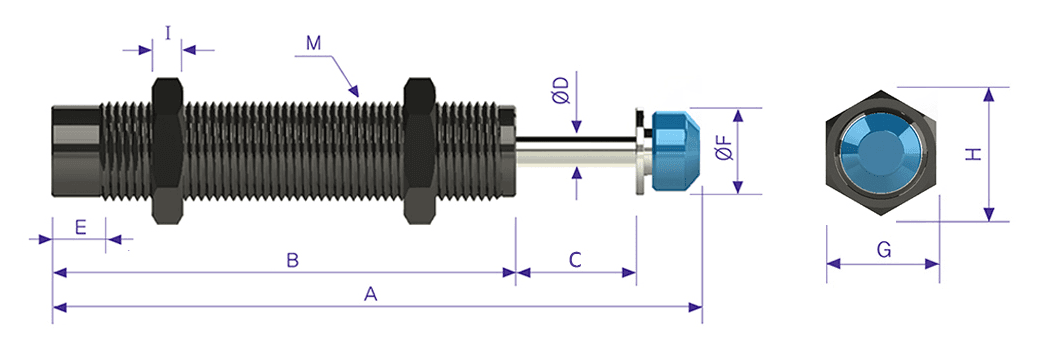

Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
SCA2530B | 30 | 161.5 | 115.5 | 30 | 8 | 13 | 8 | 22 | M25×P2.0 |

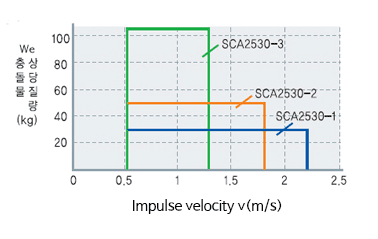

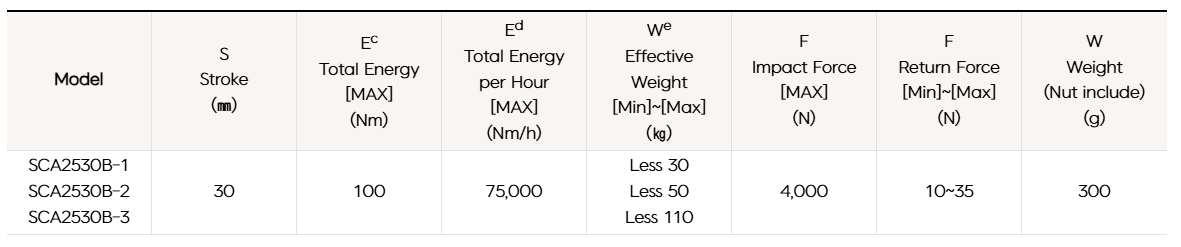

Capacity Chart
Model | S Stroke 행정 | E c Total Energy 총에너지 [Max] (Nm) | E d Total Energy per hour 시간당총에너지 [Max] (Nm/h) | W e Effective Weight 중량효과치 [Min][Max] (Kg) | F Shock Force 충격력 [Max] (N) | F Return Force 복귀력 [Min][Max] (N) | Weight 중량 (g) |
SCA2530-1 SCA2530-2 SCA2530-3 | 30 | 100 | 75,000 | Less 30 Less 50 Less 110 | 4,000 | 10~30 | 300 |
Technical Data
Special steel piston rod
