Shock Absorber manufacturer, UPA, SCA, CSC HS, SUS Series

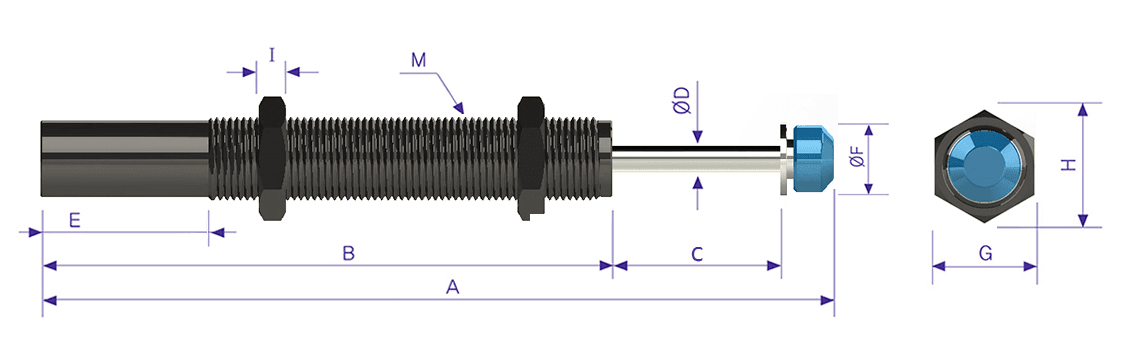

Dimensions
Model | Stroke | A | B | C | ØD | E | F | ØG | M/K |
SCA2550B | 50 | 236.5 | 170.5 | 50 | 8 | 61 | 8 | 22 | M25×P2.0 |

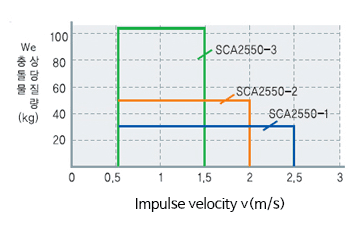

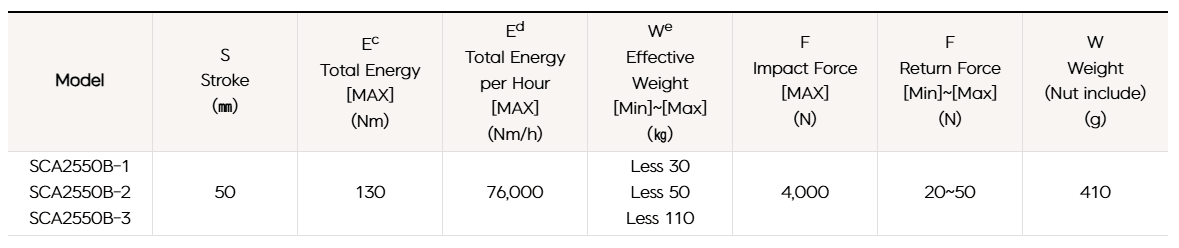

Capacity Chart
Model | S Stroke 행정 | E c Total Energy 총에너지 [Max] (Nm) | E d Total Energy per hour 시간당총에너지 [Max] (Nm/h) | W e Effective Weight 중량효과치 [Min][Max] (Kg) | F Shock Force 충격력 [Max] (N) | F Return Force 복귀력 [Min][Max] (N) | Weight 중량 (g) |
SCA2550-1 SCA2550-2 SCA2550-3 | 50 | 130 | 76,000 | Less 30 Less 50 Less 110 | 4,000 | 20~50 | 410 |
Technical Data
Special steel piston rod
