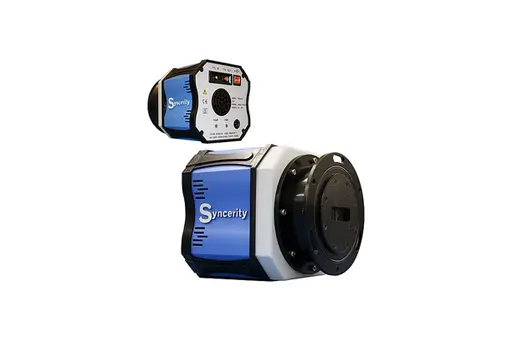

product Image

TOP

Syncerity Scientific Cameras
Model Name
FI-VU-VIS
Series
OEM Deep-Cooled Scientific Cameras
Data
Specification-Horiba-Syncerity FI-VU-VIS Camera
Manufacturer information
provider logo
HORIBA
Manufacturer of Optical Spectrometers, Camera Systems for OEM Industrial Applications
Problem with product info?
Update request
Manufacturer
HORIBA
Brand
-
SKU
137199
Product Name
Syncerity Scientific Cameras
Model Name
FI-VU-VIS
Size
-
Weight
-
Product Details

Deep Cooled UV/Vis/NIR and VUV Scientific Cameras

TE and cryogenically cooled CCD scientific cameras for ultra sensitivity from 120 nm to 1100 nm
HORIBA Scientific offers a complete line of spectroscopic multi-channel detectors for scientific research. For spectral detection from UV to near-IR, two dimensional CCDs offering a faster acquisition option over single point detectors with relatively high sensitivity. Coupled with HORIBA’s range of aberration corrected flat field imaging spectrographs, OEM packages can be assembled for a variety of applications.





Features



Cooling

Type*

Peak QE

Array Dimension

Pixel Size

Syncerity
Syncerity Spectroscopy Camera

TE -50°C

BI UV-VIS

78%

2048 x 70

14 µm x 14 µm

TE -60°C

FI-UV-VIS

58%

1024 x 256

26 µm x 26 µm

TE –50°C BI-NIR  80% 2048 x 70 14 µm x 14 µm
TE –50°C VUV 58% 2048 × 70 14 μm × 14 μm
scrollab
HORIBAManufacturer of Optical Spectrometers, Camera Systems for OEM Industrial Applications
HORIBA Scientific is a market leader in CCD spectrometers, diffraction gratings, and scientific cameras. Our OEM division offers spectroscopy and imaging solutions that will exceed your next-generation requirements and consistently outperform the competition. That includes: ㆍ Better Stray Light performance thanks to the integration of our Aberration Corrected Holographic Concave Gratingsㆍ Superior SNR thanks to higher full well combined with lower read noise on our CCD and CMOS optimized electronics Our technology portfolio spans VUV to near-infrared wavelengths, and our global team of highly experienced project managers and engineers work closely with you to understand your product requirements and business needs. Together we will deliver innovative and cost effective volume spectroscopy and imaging solutions for your most challenging industrial applications.
