Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Brand
-
SKU
139024
Product Name

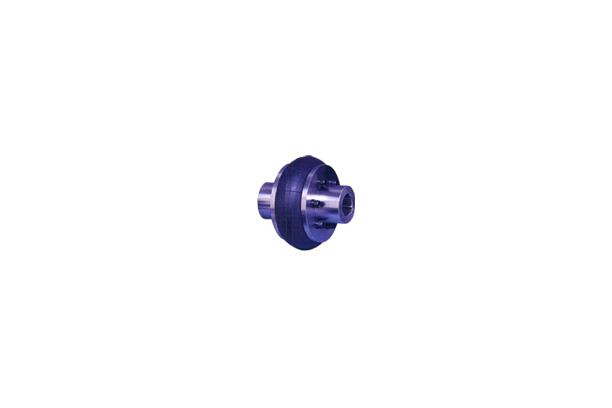

Tire Coupling
Model Name
HT-100, HT-120, HT-140, HT-160, HT-185, HT-220, HT-265, HT-340, HT-445, HT-550, HT-700
Size
-
Weight
-
Product Details
Drawing
Specification
| SIZE | Rating Torque (kg·m) |
Max. r.p.m |
Tire | FLANGE | G | W | Bolt 2×n-d ×p×l |
 (kg ·㎥) |
Weight (kg) |
|||||||
| A | B | C | D | E | F | H | I | Min. Bore |
Max. Bore |
|||||||
| HT-100 | 5 | 5000 | 100 | 35 | 37 | 50 | 82 | 36 | 28 | 6 | 8 | 22 | 93 | 2×6-M6× 1.0×20 |
34.9 | 1.1 |
| HT-120 | 10 | 4500 | 120 | 45 | 39 | 65 | 106 | 48 | 35 | 6 | 10 | 28 | 109 | 2×6-M8× 1.25×20 |
78.4 | 2.0 |
| HT-140 | 15 | 4200 | 140 | 52 | 45 | 75 | 118 | 55 | 44 | 7 | 24 | 35 | 133 | 2×6-M10× 1.5×25 |
164.6 | 3.0 |
| HT-160 | 22 | 4000 | 160 | 62 | 51 | 85 | 132 | 65 | 53 | 8 | 24 | 42 | 157 | 2×6-M10× 1.5×25 |
301.8 | 4.5 |
| HT-185 | 30 | 3600 | 185 | 74 | 58 | 100 | 154 | 77 | 60 | 10 | 34 | 48 | 178 | 2×6-M12× 1.75×25 |
568.4 | 6.6 |
| HT-220 | 50 | 3200 | 220 | 84 | 67 | 112 | 180 | 89 | 69 | 12 | 34 | 55 | 205 | 2×6-M12× 1.75×30 |
1293.6 | 11.8 |
| HT-265 | 100 | 2600 | 265 | 112 | 82 | 140 | 214 | 117 | 94 | 14 | 40 | 75 | 270 | 2×6-M12× 1.75×35 |
3802.4 | 21.7 |
| HT-340 | 165 | 2100 | 340 | 142 | 106 | 180 | 272 | 150 | 120 | 18 | 44 | 95 | 346 | 2×6-M16× 2.0×45 |
12544 | 46.5 |
| HT-445 | 500 | 1600 | 455 | 190 | 139 | 236 | 344 | 202 | 160 | 25 | 54 | 128 | 459 | 2×6-M18× 2.5×55 |
44688 | 110 |
| HT-550 | 1000 | 1200 | 550 | 230 | 173 | 290 | 430 | 246 | 170 | 26 | 64 | 170 | 513 | 2×8-M24×3.0×70 | 125440 | 187 |
| HT-700 | 2000 | 1000 | 700 | 310 | 220 | 370 | 544 | 326 | 220 | 26 | 84 | 220 | 660 | 2×12-M24× 3.0×70 |
356720 | 394 |
