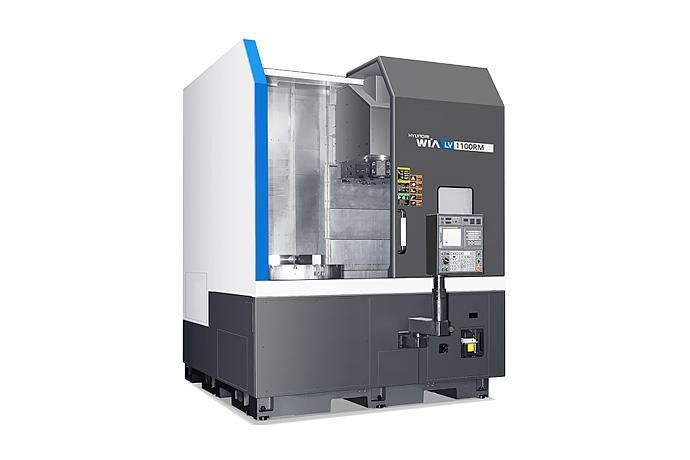

Vertical T/C
Model Name
LV1100R/L | LV1100RM/LM
Series
CNC Turning Center
Data
-
Manufacturer information
provider logo
HYUNDAI WIA

Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Brand
-
SKU
13858
Product Name
Vertical T/C
Model Name
LV1100R/L | LV1100RM/LM
Size
-
Weight
-
Product Details

Features

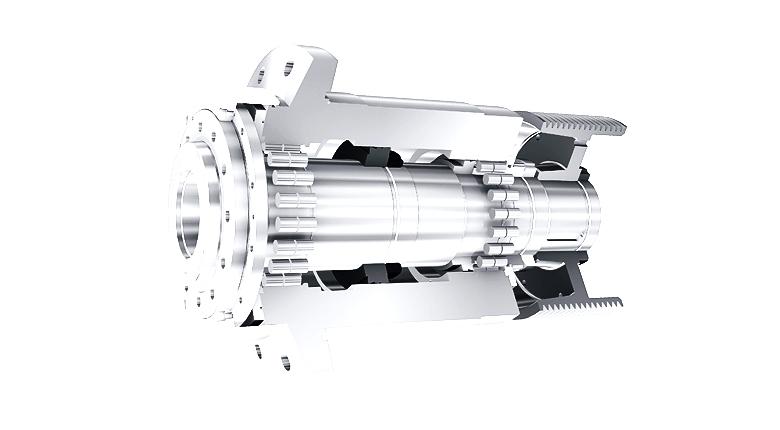

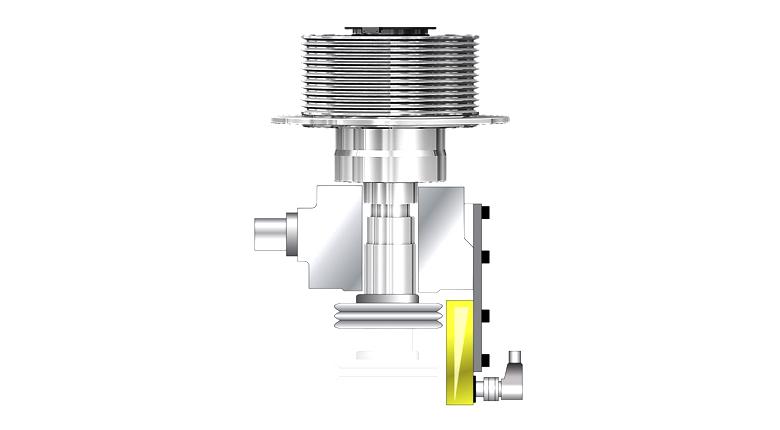

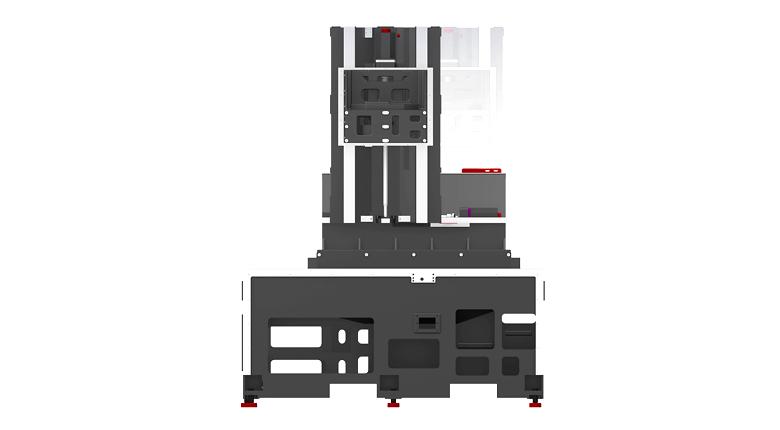

Stable structure of the main spindle of powerful heavy cutting type (Loading & clamping structure taking advantage of the Spindle weight)

2-step chuck pressure mechanism adopted to minimize material deformation

Various peripheral equipment can be used for rational machining

All-in-one machine structure incorporating power and oil supply functions in one body

Space design taking into account smooth ship treatment

“Right” and “Left” structure for the formation of rational automation



Specifications

Description Unit LV1100R/L LV1100RM/LM
Max Turning Dia mm 1160 1160
Max Turning Length mm 1,000 1,000
Chuck Size inch 32″ 32″
Driving Method - Belt Belt
Spindle RPM r/min 800 800
Spindle Output kw 45/60 45/60
Spindle Torque N.m 5,310/6,490 5,310/6,490
Travel(X/Z) mm 620/1,000 620/1,000
Rapid Travel(X/Z) m/min 24/24 24/24
Slide Type - BOX BOX

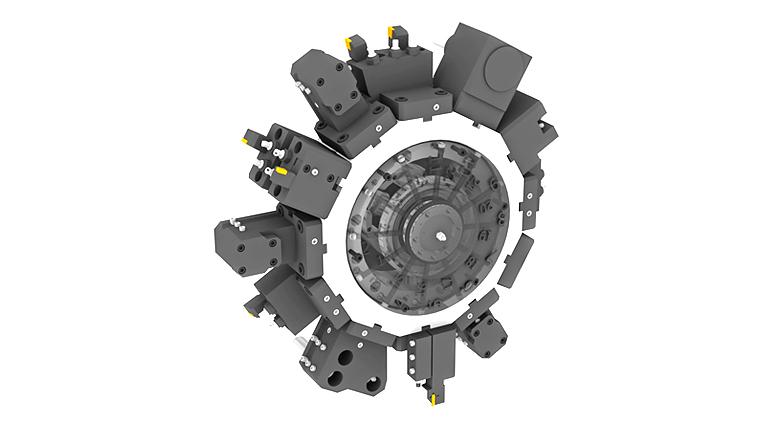

No. of Tools EA 12 12
Tool Size mm 32/80 32/80
Milling Tool Speed r/min - 3,000
CNC - F32i F32i
