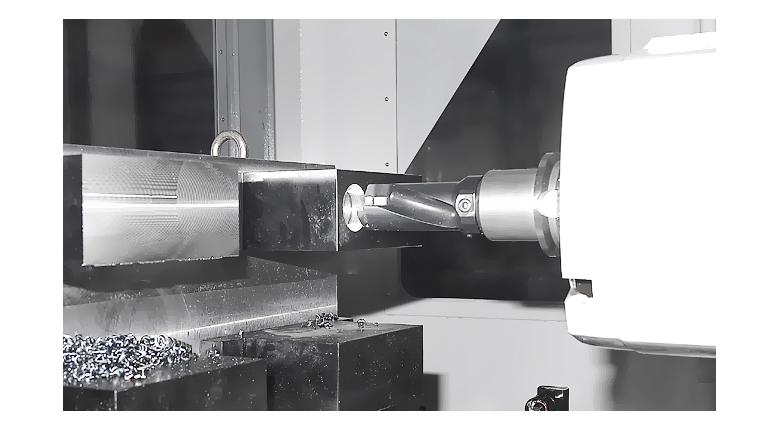

Heavy-Duty Cutting

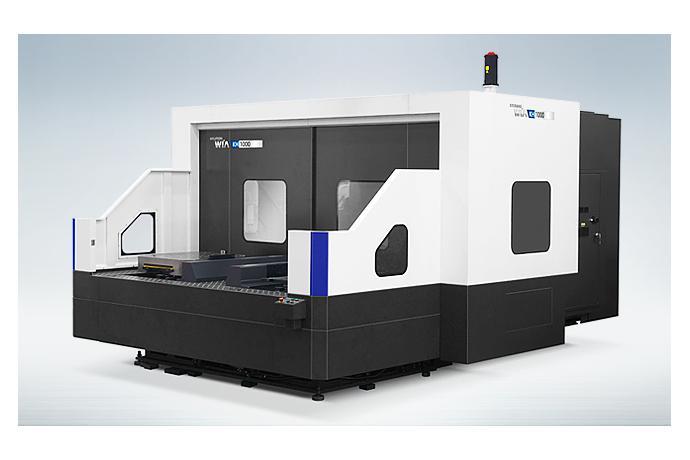

Model Name
KH1000
Series
Horizontal Machining Centers
Data
-
Manufacturer information
provider logo
HYUNDAI WIA

Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Brand
-
SKU
13899
Product Name
Heavy-Duty Cutting
Model Name
KH1000
Size
-
Weight
-
Product Details

Features

Largest work area in its class with maximum processing size of 1,900 (74.8″) and 1,500mm (59″) height

High-torque 8,000 and 4,500rpm spindles available

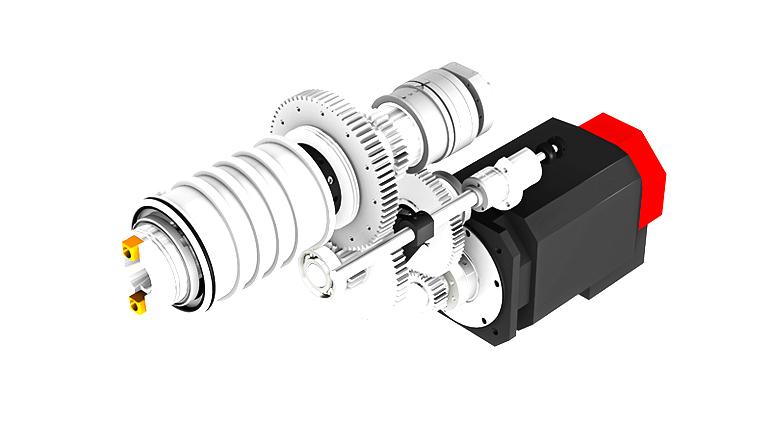

Big Plus #50 2 Step Geared Spindle

Spindle Oil Cooling System for high accuracy

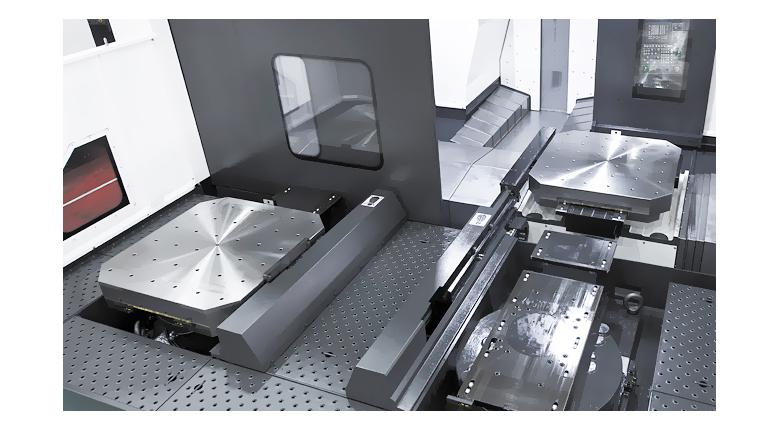

Shuttle Type Automatic Pallet Changer

Box Guides on All Axis for Superior Rigidity

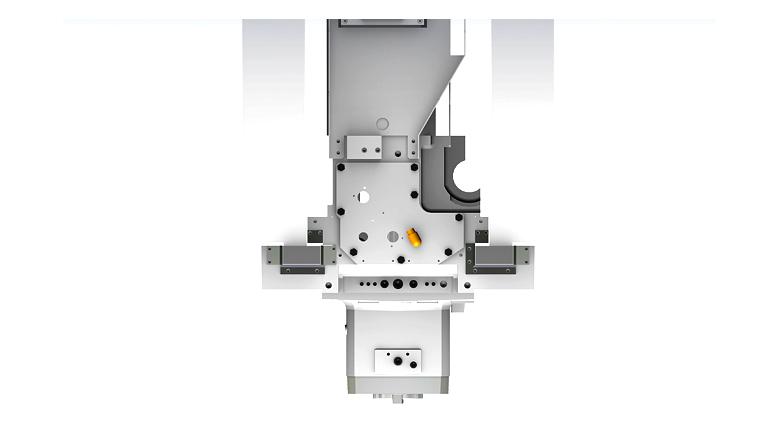

Y axis box guideways with 8 face contact

Specially Designed Column which Minimizes Thermal Displacement



Specifications

Description Unit KH1000
Pallets Size mm 1,000×1,000
Max. Load Capacity kgf 2 - 3,000
Spindle Driving Method - GEAR(2STEP)
Spindle Taper - BBT50
Spindle RPM r/min 8,000
Spindle Power kw 26/22
Spindle Torque N.m 807/686
Travel(X/Y/Z) mm 2,100/1,350/1,400
Rapid Feed Rate(X/Y/Z) m/min 20/20/20
Slide Type - BOX

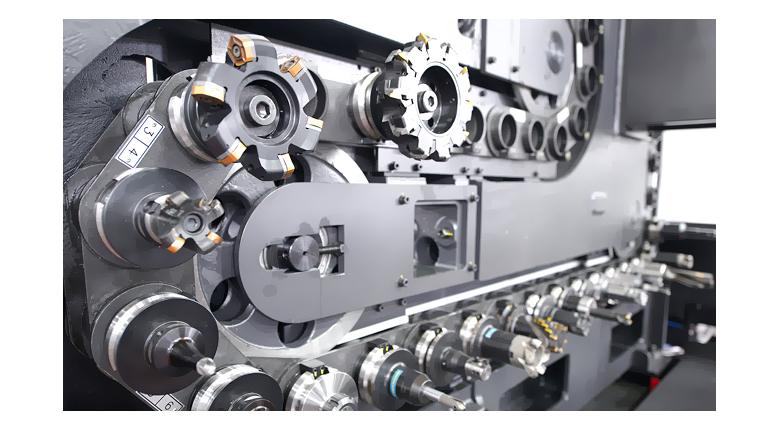

No. of Tools EA 60
Tool Change Time
(Chip To Chip)
sec 16.7
No. of Pallets EA 2
APC Type - SHUTTLE
Pallet Change Time sec 110
CNC - F31i
