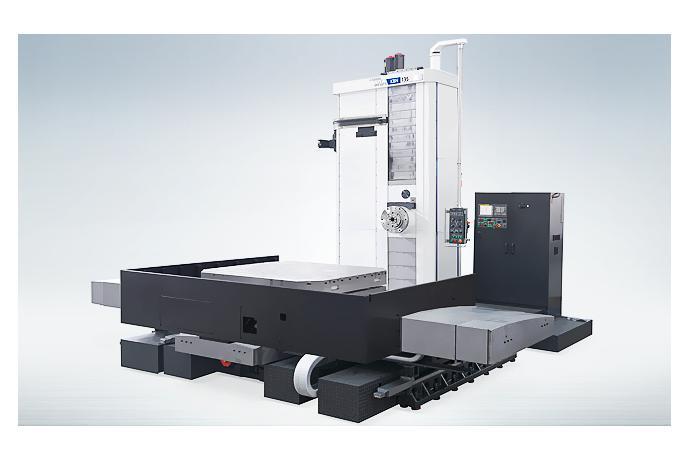

Single unit bed for X and Z axis for ultra-precision (KB135)
Movable column structure for high-load, heavy duty cutting needs (KB135C)
Selectable X and Y axis of up to 1,000mm (39.3″) and 500mm (19.6″) respectively

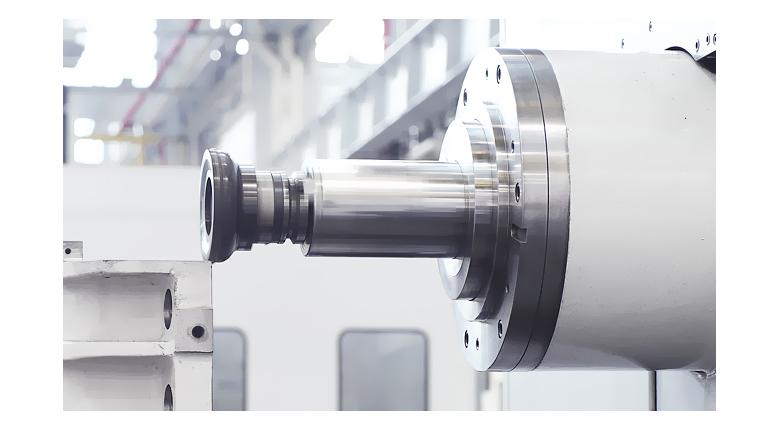

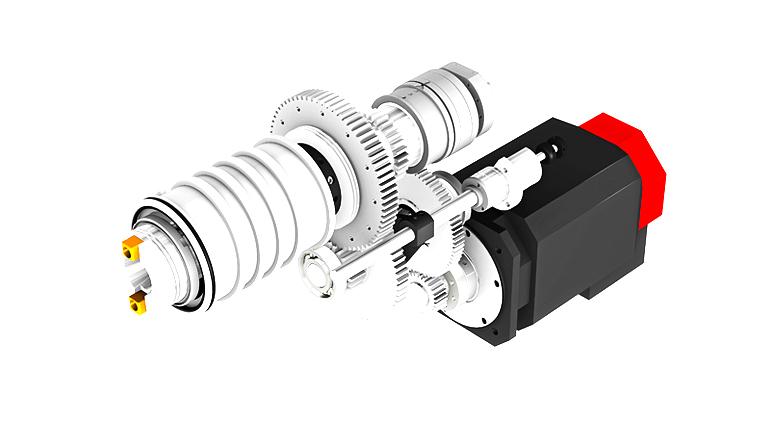

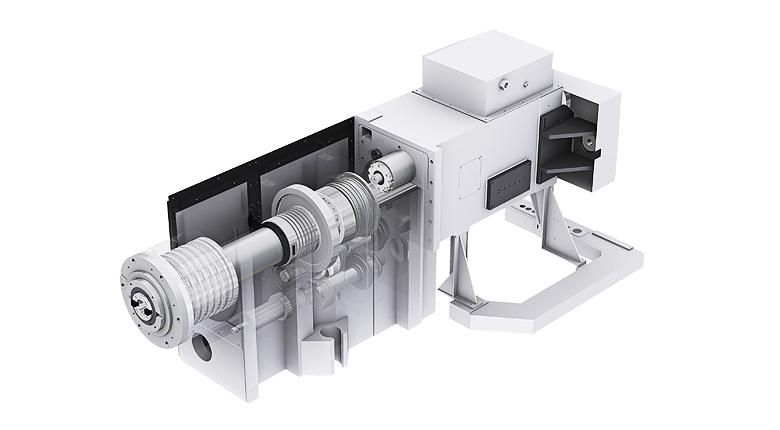

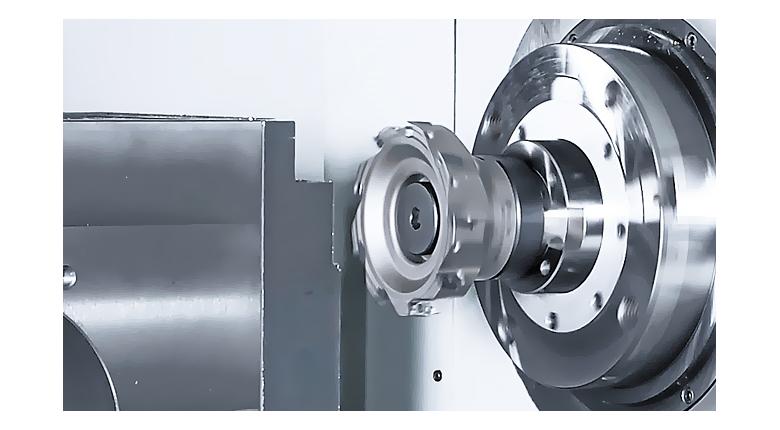

3-step gear drive main spindle for heavy duty cutting

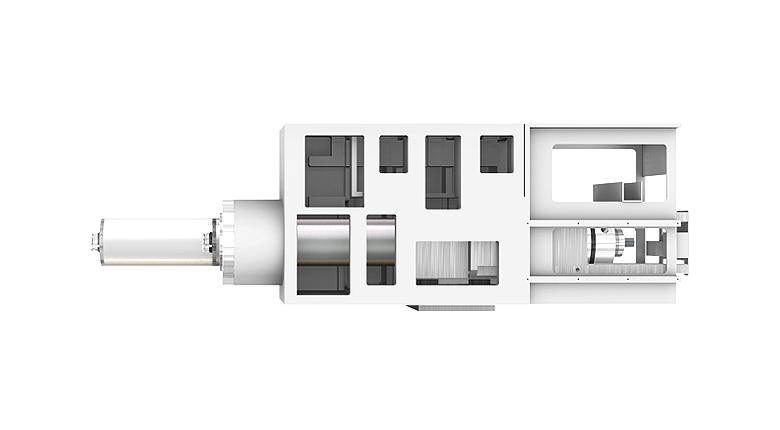

Optimal boring capability with W-axis maximum travel of 700mm(27.5″)

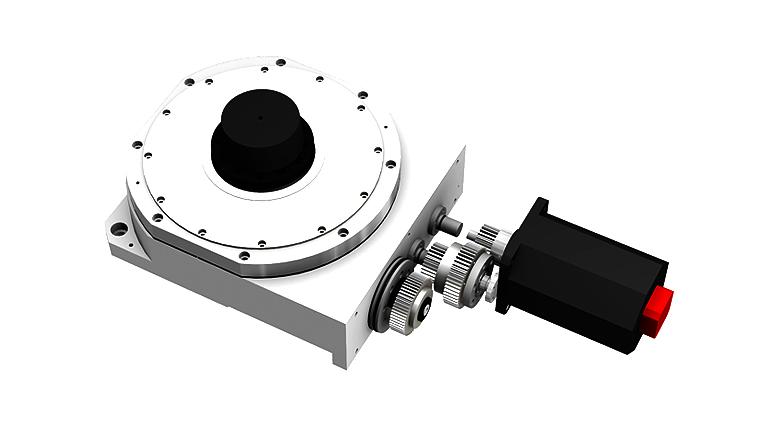

Equipped with standard linear and rotary scales for ultra-precision
Description | Unit | KBN135 |
Pallets Size | mm | 2,000×1,800 |
Max. Load Capacity | kgf | 10,000 |
Spindle Driving Method | - | GEAR(3STEP) |
Spindle Taper | - | BT50 |
Spindle RPM | r/min | 2,500 |
Spindle Power | kw | 22/18.5 |
Spindle Torque | N.m | 3,112/2,617 |
Travel(X/Y/Z) | mm | 3,000/2,000/1,600 |
Travel(A/C) | deg | 700(W-axis) |
Rapid Feed Rate(X/Y/Z) | m/min | 8/8/8 |
Rapid Feed Rate(A/C) | r/min | 8(W-axis) |
Slide Type | - | BOX |

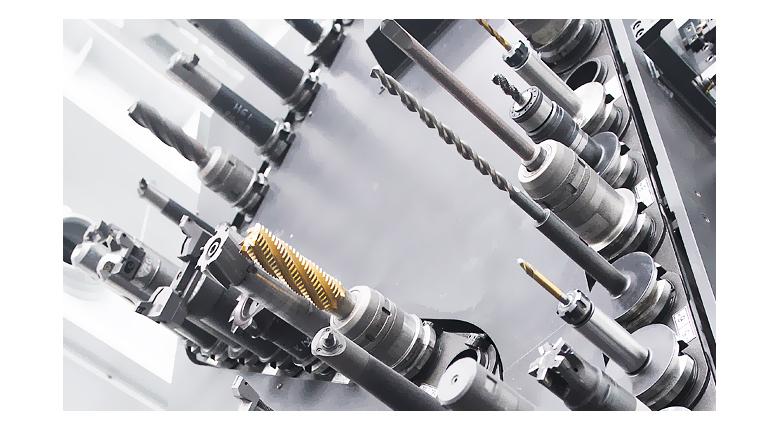

No. of Tools | EA | 40 |
Tool Change Time (Chip To Chip) |
sec | 70 |
