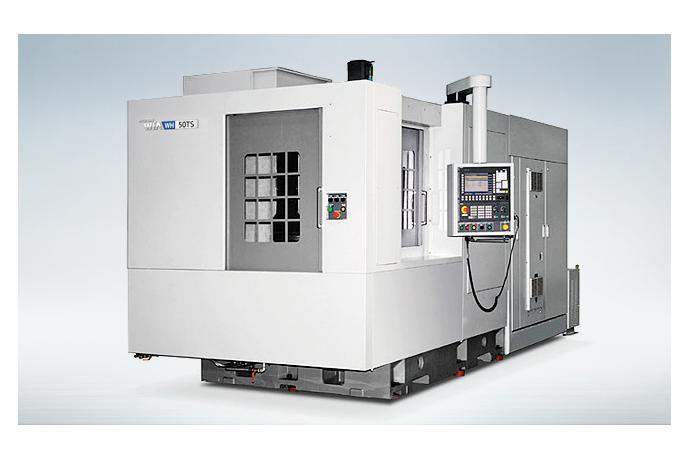

Machine (Line Center)
Model Name
WH50TS
Data
-
Manufacturer information
provider logo
HYUNDAI WIA

Automotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more

Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Brand
-
SKU
13977
Product Name
Machine (Line Center)
Model Name
WH50TS
Size
-
Weight
-
Product Details

Features

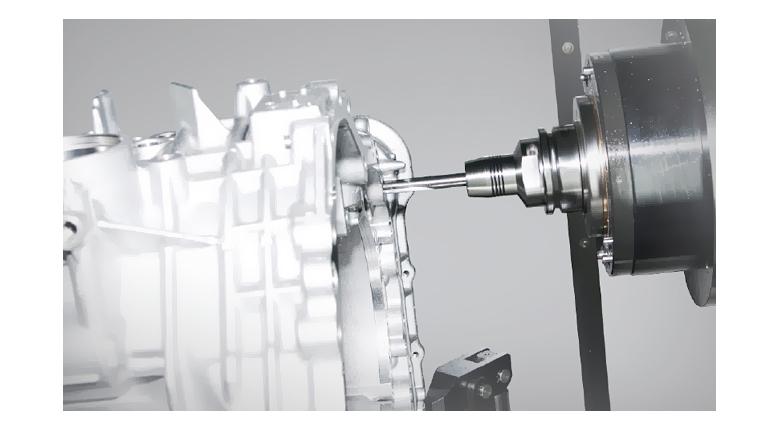

Optimized for passenger car T/M case & housing and engine cylinder block & head processing

Quick tool change speed (3.0 sec.)

Minimum installation area

Common bed for centralized/single coolant

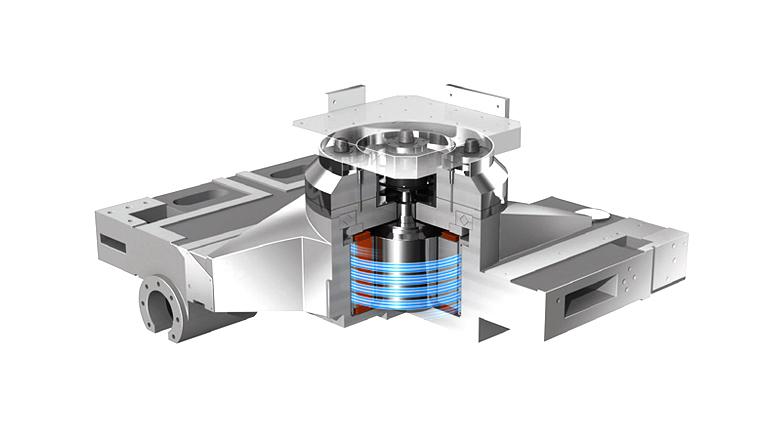

A-axis/B-axis NCRT applicable to respond to diverse processes



Specifications

Description Unit WH50TS
Table Size mm Ø500
Max. Load Capacity kg 500

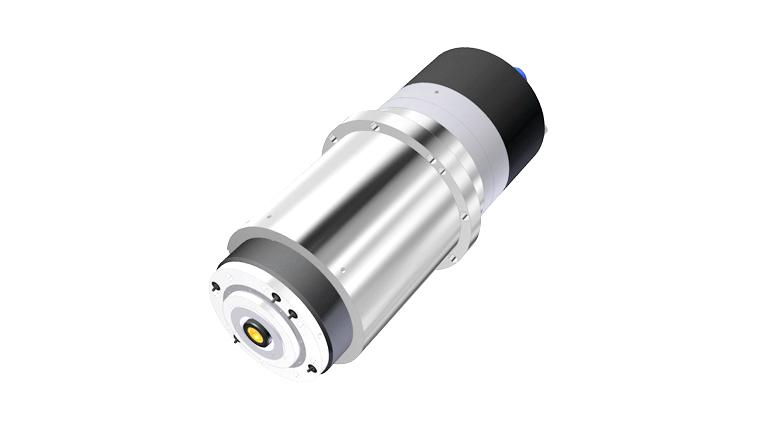

Spindle Driving Method - Built in
Spindle Taper - HSK-A63
Spindle RPM r/min 16,000
Spindle Power kw 28
Spindle Torque Nm 63
Travel(X/Y/Z) mm 630/560/630
Rapid Feed Rate(X/Y/Z) m/min 62/62/62
Slide Type - LM
No. of Tools EA 40
Tool Change Time
(Chip To Chip)
sec 3
CNC - S840D
