INTERMATEABLE WITH ALL
38999-STYLE SERIES III CONNECTORS

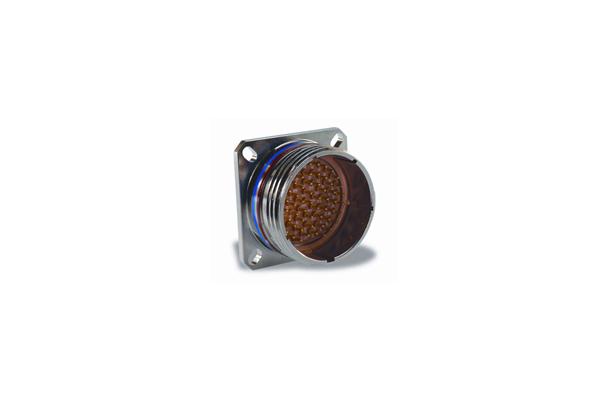

ITT Cannon KJB 38999-Style Series III connectors offer high density contact arrangements in a lightweight miniature circular connector. These 38999-Style connectors have quick-mating, triple-lead threaded, self-locking coupling for high vibration applications, are environmentally sealed and operate across a wide temperature range in extreme environments. They feature high density layouts with up to 128 data connections and power contacts rated up to 23A.
The ITT Cannon KJB series was originally designed for military vehicles and are now industry standard aerospace and military connectors. They are intermateable with Souriau connectors and all 38999-Style Series III connectors.
Features
- High Reliability
D38999 – KJB-style connectors are used in performance aircraft that demand reliable connections in some of the most rigorous environments. The connectors must perform flawlessly under wide temperature ranges, high vibrations, and be resistant to a vast array of contaminants. Visual confirmation of complete mating is accomplished by the plug coupling nut covering a red band on the mating shell.
- Outstanding EMI Shielding Protection
These connectors provide excellent signal integrity due to the shielded mating system that utilizes 360-degree shell grounding fingers, providing protection of up to 65 dB at 10 GHz.
- Operates at Extreme Temperatures
These connectors will operate in temperatures from -65°C up to 200°C (-85°F up to 392°F).
- High-Density Connectors
If space and weight are at a premium, KJB connectors offer up to 128 contacts per connector. Ideally suited for the demands of today’s digital electronics used on aircraft, advanced robotics, and critical industrial equipment.
- Self-Locking Connector System
Self-locking coupling nuts and self-locking endbell accessory hardware provide the best performance for threaded connectors in high-vibration applications.
- Broad Range of Military and Commercial Accessories
Many military standard endbells to M85049 specifications and a wide array of cable termination styles are available. Straight, 45, and 90-degree endbells come in many styles, from standard clamp to shielded environmentally-sealed and everything in between.
- Contact Protection
KJB connectors are designed to be scoop-proof. Pin contacts are recessed to prevent contact damage and contact shorting when connector halves are mated.
- Contact Retention Clips
KJB’s utilize plastic contact retention tines, while KJA utilize all-metal tines assuring the highest level of serviceability and unparalleled contact retention.
Materials & Finishes
Shell
Aluminum Alloy or Composite
Plating
W - Olive Drab Chromate over Cadmium over Electroless Nickel per QQ-P-416
F - Electroless Nickel per QQ-N-290
J - Composite, Olive Drab over Cadmium over Electroless Nickel
M - Composite, Electroless Nickel
T69 -Green Zinc Cobalt
A297 - Black Electroless Nickel
A296 - Black Zinc Cobalt
G - Space Grade Outgassed
Plating
Gold plate, 50 microinches per MIL-G-45204 type II, grade C, class 1
Insulator
Hard plastic wafer which contains metal retention tines for high-reliability retention of crimp contacts
Grommet & Seals
Silicone-based elastomer
Grounding Springs
Beryllium copper (grounded plug only)
Electrical Data
Test Voltage (Unmated Conditions)
![](https://cdn.komachine.com/media/product-desc/87b9a914-0dcc-42af-9f8a-9594a5653e8d)
Operating Voltage
![](https://cdn.komachine.com/media/product-desc/60cfc534-bc18-441a-803e-16e6ea38d03c)
Current Rating by contact size and wire accommodations (Test Amps)
![](https://cdn.komachine.com/media/product-desc/452ce296-6907-4621-94e3-c9588cd631e4)
Contact Resistance of mated contacts end-to-end
![](https://cdn.komachine.com/media/product-desc/13a82d0f-bbba-465e-b746-1a247e05daca)
Insulation Resistance 5,000 megohms minimum
Mechanical
Operating Temperature |
W, T69, A296, A297 plating -65° to 175°C (-87°F to 347°F) F + G plating -65°C to 200°C (-85°F to 392°F) |
Sealing |
Against sand, dust per MIL-STD-202 & ice |
Wire Sealing Range
![](https://cdn.komachine.com/media/product-desc/6f13dd81-5559-4da8-bc0e-20fbd7f28bf2)
Insulation Strip Length
![](https://cdn.komachine.com/media/product-desc/68ad6a10-bcd3-42d7-93a6-07d51cb1a5b3)
Mating Life
500 cycles minimum
Salt Spray
Finish W: 500-hour per MIL-STD-1344A method 1001 condition C
Finish F & G, T69, A296: 48-hour per MIL-STD-1344A method 1001 condition B
Finish A297: 192 hour
Finish J & M: 1000-hour per MIL-STD-1344A method 1001 condition C
Temperature Durability
Finish W, T69, A296, A297: 175°C (347°F), Finish F: 200°C (392°F), mated, wired test period 1000 hours to MIL-STD-1344 Method 1005
Chemical Resistance
Lubricating oils, hydraulic fluids, coolants, deicing fluids per MIL-STD-1344A Method 1016 condition a - I
Sine Vibration
60 grms at -65°C to +200°C (-85°F to +392°F) ambient temperature with stimulated accessory load
Random Vibration
49.5 grms at ambient temperatures
EMI Shielding Effectiveness
100 MHz to 10 GHz - minimum attenuation of 50 dB
Contact Type
Crimp, fiber optic, co-ax, twinax, thermocouple or printed circuit
Number of Circuits
3 to 128
Contact Insertion
Insertion from rear of connector with simple plastic or high-quality metal hand tool. Extraction from rear with simple plastic or high-quality metal hand tools.
Contact Retention
Per MIL-DTL-38999 tested to MIL-STD-1344A method 2007
![](https://cdn.komachine.com/media/product-desc/7c12999f-4021-4f2f-a2e5-6f039cdedf79)
NOTE: CT/CA/MS receptacle contacts are bonded into the insulator
Polarization Five keyways with optional minor keyways rotation (Note insert and main keyway remain fixed)
Cross Section
![](https://cdn.komachine.com/media/product-desc/45acd30a-1c69-4f71-96c0-3c01a42f996a)
