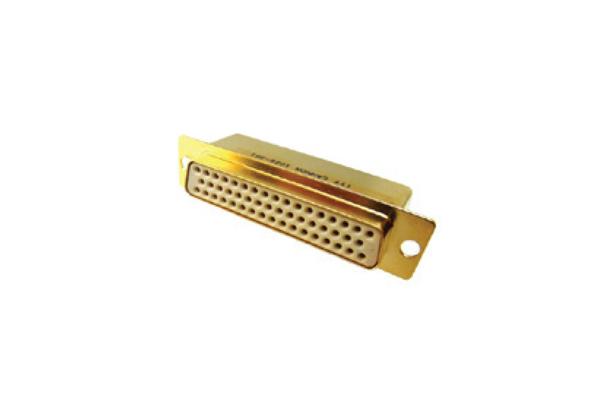

ITT Cannon Space Grade D-Sub Connectors | DNM & DNMB Series
Model Name
-
Size
-
Weight
-
Product Details

HIGH RELIABILITY RECTANGULAR CONNECTOR SUITED FOR SPACE

ITT Cannon builds high performance D-Sub connectors for space applications per NASA & SAE standards. These high-reliability connectors meet stringent tests for outgassing and residual magnetism.

ITT Cannon’s space-grade D-Sub connectors were derived from MIL-DLT-24308 standards and available in a wide range of standard to double density configurations for cable-to-cable and printed circuit board applications.

The DNM and DNMB connector series are non-magnetic interconnects suitable for space, launch system, military, and aerospace applications.





Features

  • PCB Contacts
    • Straight
    • Right angle (US and European spacing)
  • Shell Platings/Material
    • Zinc plated
    • Cadmium plated
    • Stainless Steel
    • Dimpled shells for grounding
  • Various Insert Combinations Available Mixing Signal with Power/Coaxial Contacts
  • Contacts
    • High power
    • High voltage
    • Coaxial 50 & 75 Ohm
    • Machined high reliability
    • Stamped and formed, cost effective
    • Pre-installed or self-installed
    • Various Contact plating levels of gold over nickel
    • Various Mating cycle contacts 200-500 mating cycles



Specifications

† For Signal Contacts
++ Up to 40 Amp on power 5 Amp in Coax and High Voltage

All dimensions in inches, unless otherwise stated.



† For Signal Contacts
++ Up to 40 Amp on power 5 Amp in Coax and High Voltage

All dimensions in inches, unless otherwise stated.
